Mitutoyo Carbide 0.45mm Needle Point Stylus for Mu Checker Cartridge Head Probes

No reviews yet Write a Review
This needle point stylus fits the Mu checker cartridge head probes 519-331 and 519-348 and is made of carbide. Choose your desired dimensions from the 2 options…

Read more

SKU:
$71.00 - $286.00
Hurry up! Current stock:

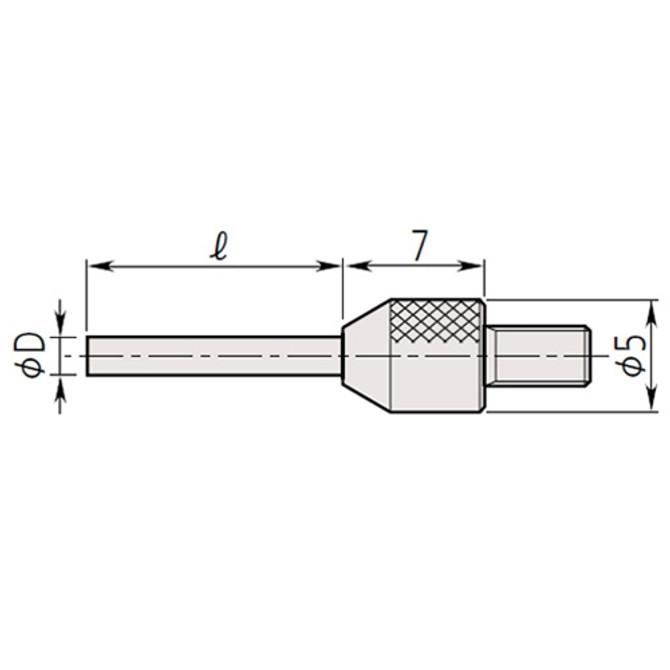

This needle point stylus fits the Mu checker cartridge head probes 519-331 and 519-348 and is made of carbide. Choose your desired dimensions from the 2 options below (refer to the second image above):

  • Choose from the following 2 options:
    • ℓ = 3mm
    • ℓ = 5mm
  • Diameter of needle (D) = Ø0.45mm
  • Thread size = M2.5x0.45 × 5mm

NOTE: This item is not returnable.

Mitutoyo part # 120066, 21AAA329

This product hasn't received any reviews yet. Be the first to review this product!

Description

This needle point stylus fits the Mu checker cartridge head probes 519-331 and 519-348 and is made of carbide. Choose your desired dimensions from the 2 options below (refer to the second image above):

  • Choose from the following 2 options:
    • ℓ = 3mm
    • ℓ = 5mm
  • Diameter of needle (D) = Ø0.45mm
  • Thread size = M2.5x0.45 × 5mm

NOTE: This item is not returnable.

Mitutoyo part # 120066, 21AAA329
