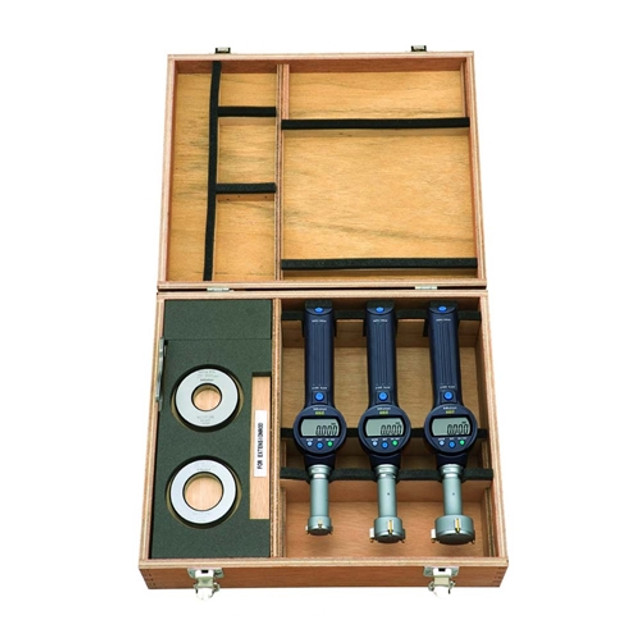

Mitutoyo Borematic ABSOLUTE Digimatic Snap Bore Gage Complete Set 0.5-1"

This complete set of Mitutoyo Borematic ABSOLUTE digimatic snap bore gages features carbide coated contact points for durability and impact resistance allowing for measurements to be taken at the bottom of blind holes. The large LCD screen means measurements can be read at any angle. Features a go/no-go judgement function. This set includes three gages, measuring heads for each size and extension rods.  Mitutoyo Setting Rings can be used to quickly and accurately set bore gages.

Contact Microscope World for information on having this instrument calibrated.

• Range: 0.5-0.65", 0.65-.80", 0.8-1" / 12.7-16.51mm, 16-.51-20.32mm, 20.32-25.4mm
• Accuracy: +/- 0.00025"
• Resolution: 0.00005" / 0.001mm
• Measuring Method: Three-point method
• Data Output: Yes, use SPC cable.
• Display: LCD
• Measuring Faces: Carbide tipped
• Setting Rings: Includes two setting rings; 0.65" and 0.8" DIA.
• Battery: SR44, battery life approximately 1 year under normal use.
• Functions: Zero/ABS, presetting, go/no-go judgment, inch/mm conversion, power on/off, SPC data output, data hold.
• Case: Supplied in fitted wooden case.

Mitutoyo Part # 568-966-10
NOTE: This item is not returnable.
