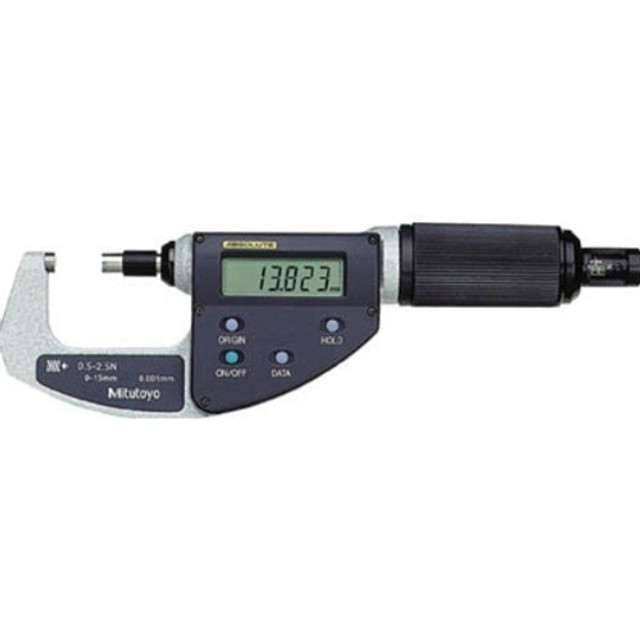

Mitutoyo ABSOLUTE Digimatic Micrometer 0-10mm Adjustable Measuring Force

This Mitutoyo ABSOLUTE digimatic micrometer has a constant and low measuring force mechanism in the thimble. Adjustable measuring force accommodates various types of work materials. The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy. Micrometer has non-rotating spindle and the new ratchet friction thimble. Speedy spindle feed by 0.4"/rev, with absolute linear scale and SPC data output.

Contact Microscope World for information on having this instrument calibrated.

• Range 0-10mm
• Accuracy ± 2µm
• Resolution 0.001mm
• Measuring Force 2-10 (2, 4, 6, 8, 10) N
• Data Output Yes, use 6-Pin SPC cable.
• Display LCD
• Flatness 0.3µm
• Measuring Faces Carbide tipped
• Parallelism 2µm
• Battery SR44, battery life approximately 1 year under normal use.
• Functions Origin, hold/data, on/off, zero/ABS, low voltage alarm, counting value composition error alarm.
• Case Includes fitted plastic case.

Mitutoyo Part # = 227-205-22
NOTE: This item is not returnable.
