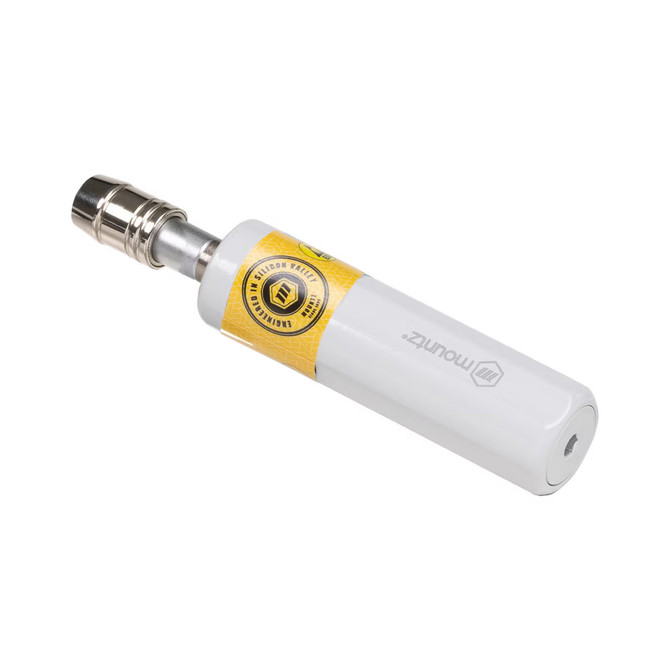

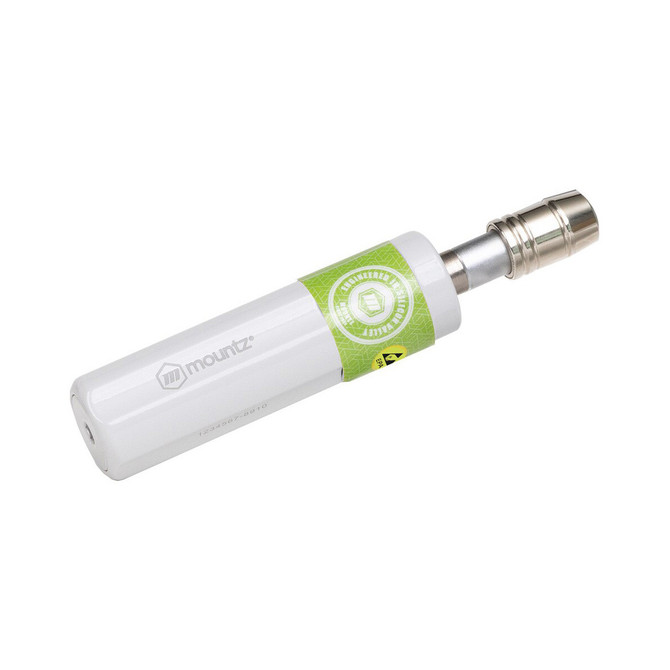

Medium ESD Preset Torque Screwdriver 2-20 lbf.in / 22-226 cN.m

These FG preset torque screwdrivers are designed for an ESD-safe environment that adheres strictly to IEC standards, safeguarding against electrostatic energy and ensuring protection for delicate electronics. Each tool has dynamic wear-resistant internal seals to prevent grease leakage and contamination from infiltrating sensitive components.

Preset torque screwdrivers improve productivity by consistently applying the correct torque value to each fastener. Each torque screwdriver has an internal torque adjustment mechanism for setting the torque value and preset using a hex key and a torque analyzer. The locking mechanism prevents accidental torque setting changes.

• Drive Size 1/4" F/Hex
• American Torque Range 2 - 20 lbf.in
• S.I. Torque Range 22 - 226 cN.m
• ESD High-grade dissipative coating maintains a surface resistance within the range of 10⁵ to 10⁸ Ohms, ensuring compliance with ESD standards (Methods: IEC 61340-5-1, ANSI/ESD STM11.13).
• Weight 7.3oz
• Length 5.2"

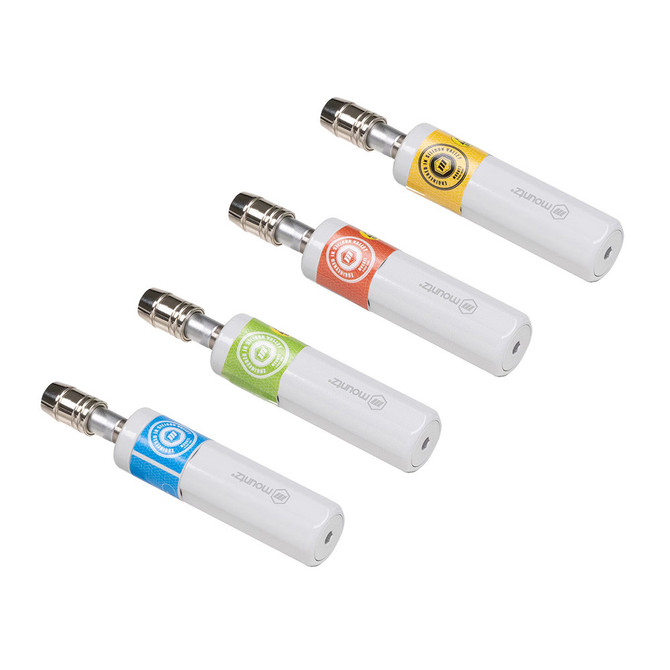

• Colors Blue, Red, Green, Gold

View the FG Preset Torque ESD Brochure

View the FG-20i ESD Dimension Drawing

View the FG ESD Preset Torque Screwdrivers FAQs

Assembled in USA

Mountz FG-20i ESD part #s 076632, 076637, 076642, 076647

NOTE: This item is not returnable.
