Inspectis U30s Digital Boom Microscope 4K UHD 27" Monitor Software and Computer
Inspectis U30s Digital Boom Microscope 4K UHD 27" Monitor Software and Computer
Inspectis U30s Digital Boom Microscope 4K UHD 27" Monitor Software and Computer

Inspectis U30s Digital Boom Microscope 4K UHD 27" Monitor Software and Computer

No reviews yet Write a Review
The Inspectis U30s 4K UHD digital microscope features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, …

Read more
SKU: U30s-ESD-LB-SABS-MON27
$15,700.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

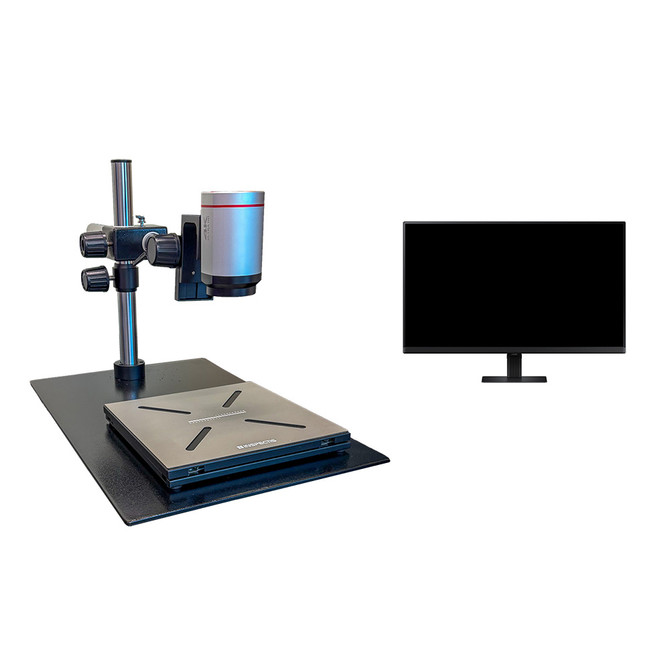

The Inspectis U30s 4K UHD digital microscope features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, and a 27" UHD 4K monitor, and computer with Inspectis ProX software installed.

  • Video Output: 4K Ultra HD 2160p/30 fps switchable to FHD 1080p/60pfs
  • Imager: 8.5 MP, 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
  • Pixel Size: 1.62µm x 1.62µm
  • Lens: Megapixel motorized 30:1 zoom range with auto focus, iris control and pre-calibrated optics with automatic zoom tracking.
  • Camera and lens control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
  • Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
  • Illumination: LED ring light with diffuser.
  • Stand: Single arm boom stand with 400mm (15.7") vertical column. ESD base is 400mm (15.7") x 600mm (23.6") with extended connector for 1/4-20 mount.
  • Computer: Includes computer with i5 CPU, 16GB RAM, 512SSD, and Inspectis ProX Software installed.
  • Software: Includes INSPECTIS ProX software installed on the computer. Software provides DXF / CAD overlay on live image, manual and automatic focus stacking, time lapse video recording, auto and manual Z focus stacking, optical edge detection and DXF export, DXF overlay on live image, and automatic alignment and rescaling of overlaid image.
  • UHD 4K Monitor: Includes UHD 4K monitor 27".
  • Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
  • Manufactured in Sweden.
Zoom Factor Magnification on 27" LCD Optical Magnification
 1 1.8 0.6
5 9.8 3.2
10 18.9 6.2
15 29.0 9.5
20 38.8 12.7
30 64.1 21
30 +1 79.4 26
30 +2 91.6 30
30 +3 106.9 35
30 +5 140.5 46
30 +10 201.5 66
10 +28 131.3 43
30 +28 436.7 143
10 +56 226.0 74
30 +56 754.2 247



NOTE: This item is not returnable.
