Inspectis U30s 4K Basics Software All in One System

The Inspectis U30s 4K all in one system with Inspectis Basics Software features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, 27" 4K monitor, computer, and full HD HDMI USD3.0 image and capture device. This system includes Inspectis Basics Software with functions for image view, capture, annotation, line measurement and has pre-calibrated magnifications. Explore more features of Inspectis Basics Software.

• Video Output: 4K Ultra HD 2160p/30 fps switchable to FHD 1080p/60pfs
• Imager: 8.5 MP, 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size: 1.62µm x 1.62µm
• Lens: Megapixle motorized 30:1 zoom range with auto focus, iris control and pre-calibrated optics with automatic zoom tracking.
• Camera and lens control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
• Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
• Capture Device: USB image and video capture device for recording and storing images and videos.
• Illumination: Three illumination options
  • Inspectis White LED Ring Light: 8 high power LEDs with 5800 K color temperature and detachable diffuser. Illumination controls for soft, smooth light adjustment. The ring light is powered directly through the AUX output of the Inspectis digital microscope.
  • LED Dual Pipe: Each pipe light contains 3w LED light with a bulb life expectancy of 20,000 hours. Variable intensity. Pipe length of 24". 110v - 240v power supply.

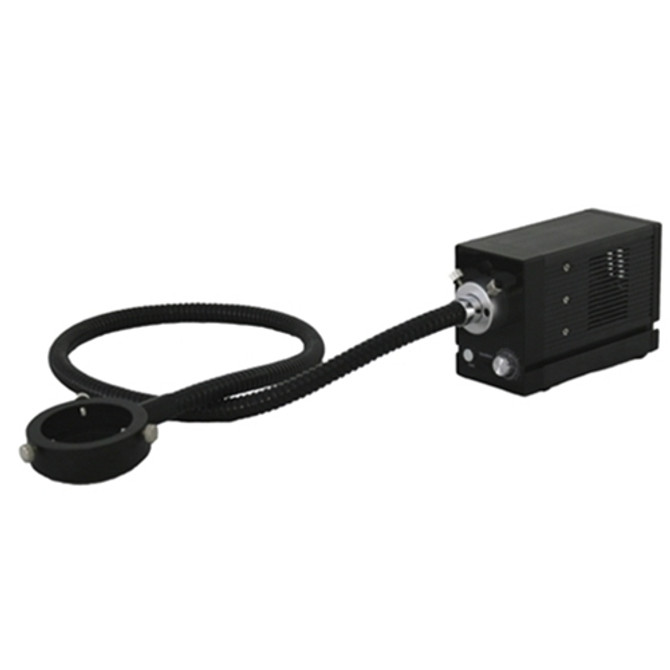

  • High Intensity LED Light Box with Fiber Ring: 20w LED light with variable intensity control. Flexible ring light guide is 40" (1,000mm) in length with inside diameter of ring measuring 60.5mm. 100v-240v switchable power supply.
• Stand: Rigid industry standard all aluminum integrated stand.
• Computer / Monitor: Computer with 27" 4K monitor with 3840 x 2160 resolution.
• Software: Inspectis Basics Software features:
  • Live image with freeze frame
  • Capture still images and video
  • Digital zoom
  • Calibrated measurement thru zoom range
  • Pre-set for different magnification levels
  • Lens distortion correction
  • Flip image, vertical & horizontal
  • Distance measurement
  • Annotation
  • Object count
  • Overlay crosshair or grid
  • Saved image folders
• Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
• Manufactured in Sweden.

NOTE: This item is not returnable.
