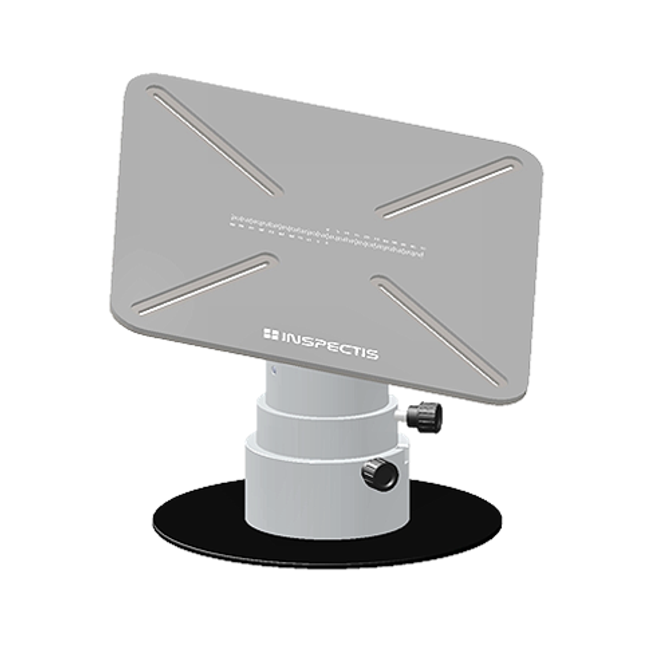

Inspectis Telescopic Height Adjustment Tilt Table

This inspectis telescopic height adjustment tilt table has a working surface covered with a high friction antistatic mat to keep samples in place during inspection. The table provides vertical displacement of 103mm of the sample along the optical axis of the digital inspection microscope and up to 30º angle of the sample while under inspection. This table was designed to adjust the working distance of the Inspectis F30s, F35s, and U30 digital microscopes when using +1, +2, +3, and +5 diopter macro lenses. The tilt board has four slots available for attaching the Inspectis Magnetics Pegs.

• Board size: 220 x 220mm
• Maximum tilt angle: 30º all directions
• Height adjustment (Z-travel): 72 to 175mm , (103mm stepless)
• Weight: 2.5kg
• Protection: ESD protected

Made in Sweden.

NOTE: This item is not returnable. Please allow 3-4 weeks for delivery.

Part #HD-150 View the Inspectis Telescopic Height Adjustment Tilt Table data sheet.
