Inspectis F30s HD Swing Arm Digital Microscope 27" Monitor

Inspectis F30s HD Swing Arm Digital Microscope 27" Monitor

Name: Inspectis F30s HD Swing Arm Digital Microscope 27" Monitor
SKU: F30s-ESD-SWA-MON27
Price: 7265 USD
Availability: InStock

No reviews yet Write a Review

The Inspectis F30s HD digital zoom microscope features the F30s HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, and 27" …

SKU: F30s-ESD-SWA-MON27

$7,265.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

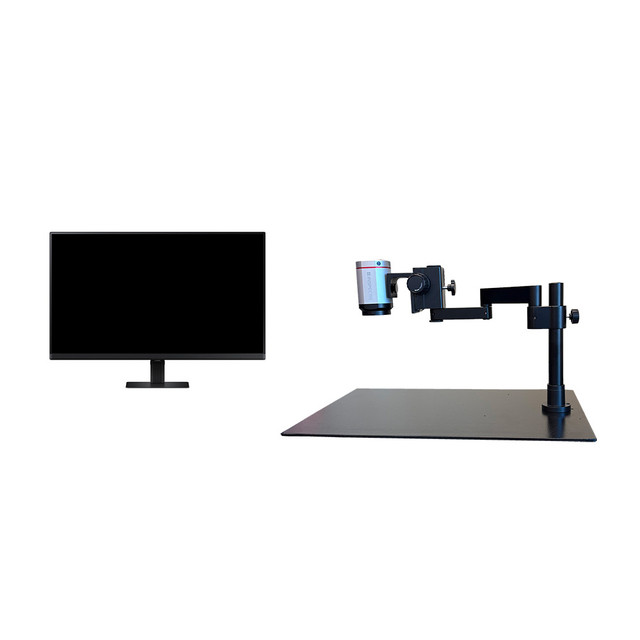

The Inspectis F30s HD digital zoom microscope features the F30s HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, and 27" HD monitor.

Video Output: FHD 1080p at 60fps switchable to Full HD 1080p at 50fps by remote control panel. HDMI type A Female connector on rear panel.
Imager: 2 MP, 1920(H) x 1080(W) 16:9 format progressive scan
Lens: High resolution motorized 30:1 zoom range with auto-focus, iris control and pre-calibrated optics.
Working Distance: 230mm
Onboard Control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
Capture Device: USB image and video capture device for recording and storing images and videos.
Illumination: LED ring light with diffuser.
Stand: Swing arm stand with 260mm (10.2") vertical column with 400mm (15.7") horizontal reach. ESD base is 300mm (11.8") x 450mm (17.7") with bonder pin mount 1/4-20 screw.
HD Monitor: Includes UHD monitor, 27".
Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
Manufactured in Sweden.

Zoom Factor	Magnification on 27" LCD	Optical Magnification
1	2.1	0.8
2	4.3	1.6
3	6.4	2.4
4	8.3	3.1
5	10.2	3.8
6	12.3	4.6
7	14.4	5.4
8	16.3	6.1
9	18.2	6.8
10	20.3	7.6
11	22.2	8.3
12	24.6	9.2
13	26.2	9.8
14	28.3	10.6
15	30.5	11.4
16	32.3	12.1
17	34.2	12.8
18	36.3	13.6
19	37.7	14.1
20	40.3	15.1
21	41.9	15.7
22	43.6	16.3
23	47	17.6
24	49.2	18.4
25	51.3	19.2
26	52.4	19.6
27	53.7	20.1
28	56.6	21.2
29	58.2	21.8
30	60.1	22.5
30 w/ +1	74.8	28
30 w/ +2	85.5	32
31 w/ +3	96.2	36
31 w/ +5	120.2	45
32 w/ +10	181.7	68

NOTE: This item is not returnable.
