High Resolution Stereo Zoom HD Digital Track Stand Microscope

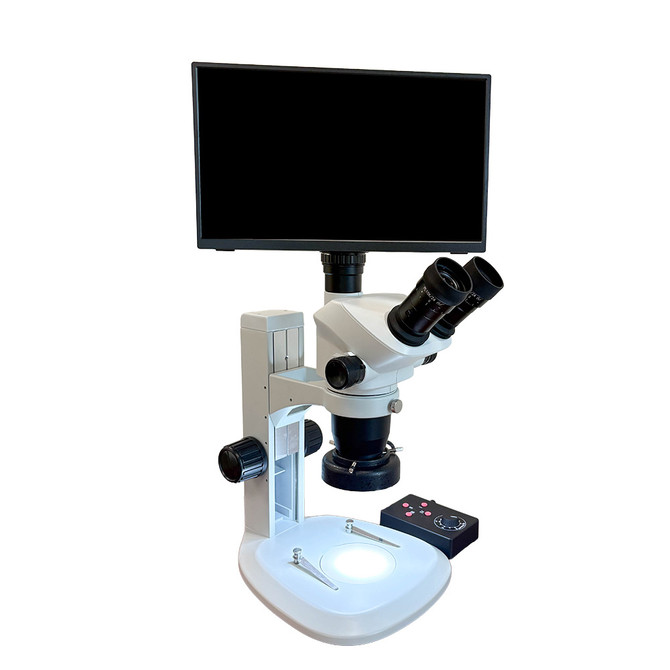

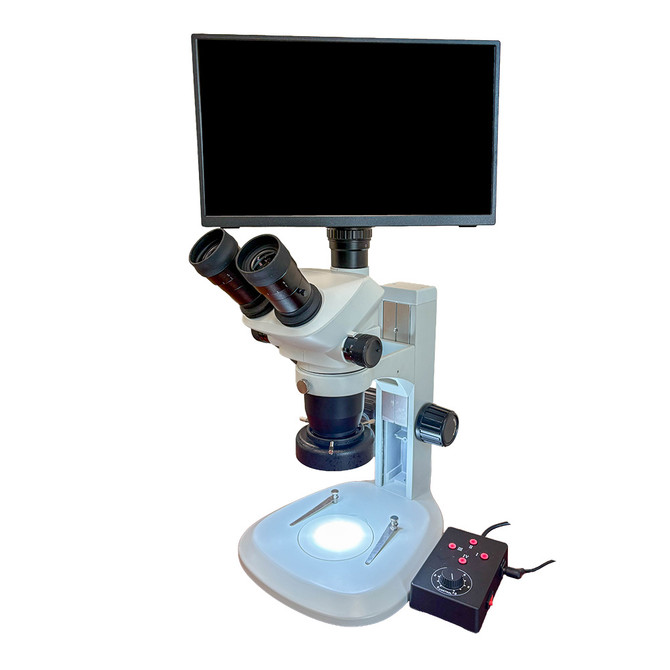

The FZ8 high resolution stereo zoom microscope with a magnification range of 6.5x - 52x is on a track stand and has a LED ring light. The system includes a high definition HD camera and monitor.

• Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Light is split 50:50 between eyetubes and trinocular port. Includes 0.5x c-mount adapter.
• Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 24 with ±5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 0.65x - 5.2x. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 6.5x - 52x.  Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details. Note that when changing eyepieces the magnification of the camera will not be altered.
• Working Distance: 118mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Field of View: 36.2mm at 6.5x and 4.7mm at 52x.
• Stand: Track stand with ergonomic, low-profile base.
• Specimen Stage: Includes 95mm black and white stage plate with two locked-on stage clips.
• Focusing: Rack and pinion focusing has slip clutch to protect mechanism against over-turning, and special tension adjustment. 120mm focusing stroke.
• Illumination: Includes 4-Quadrant LED ring light with 72 individual LED lights. 100~240V. Includes ring light adapter.
• Camera: Includes 0.5x c-mount adapter and 4K HD camera with HDMI and USB2 output. 1/1.8" Exmor Sony IMX334(C) sensor. Pixels 2.0 x 2.0µm. 30 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture to SD card or USB flash drive. Includes software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse. Software can be used to capture images and video and make measurements. If making measurements with the software you will need a stage micrometer (available when ordering).
• Software Calibration: If you plan to make measurements with the software you will need to calibrate the microscope with the software. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer included is a dual ruler with 1" equally spaced and numbered 0-10 as well as 25mm equally spaced and numbered 0-25. If NIST certification is selected 10 points in total will be certified. Please note that NIST certification takes approximately 2 weeks.
• LCD HD Monitor: 13.3" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
• Size: 11.75" W x 12" D x  18" H
• Warranty: 5 years warranty on microscope excluding electrical parts. 1 year warranty on camera, monitor, and LED ring light.

FZ8-TS-HD
