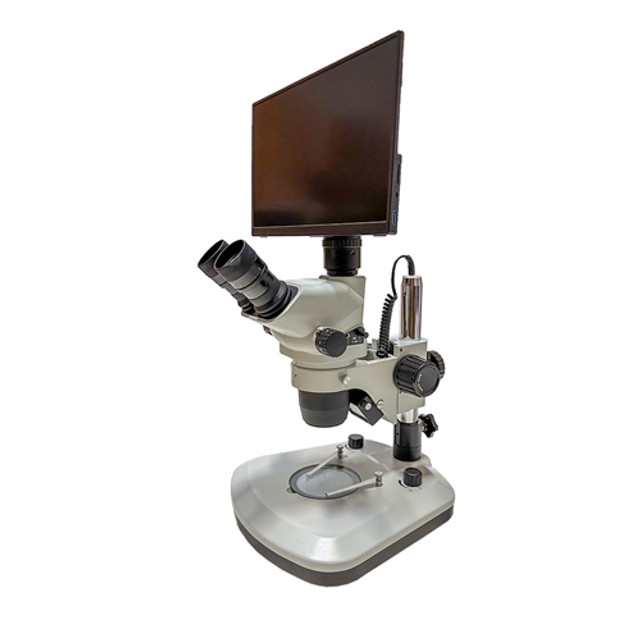

High Resolution Stereo Zoom Digital Microscope

High Resolution Stereo Zoom Digital Microscope

No reviews yet Write a Review

The FZ8 high resolution stereo zoom microscope provides 6.5x - 52x magnification on an ergonomic post stand with LED dual pipe lights. The system includes your …

SKU:

$2,575.00 - $7,875.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

The FZ8 high resolution stereo zoom microscope provides 6.5x - 52x magnification on an ergonomic post stand with LED dual pipe lights. The system includes your choice of digital camera and software.

Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Light is split 50:50 between eyetubes and trinocular port. Includes c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 24 with ±5 diopter adjustment on each eye.
Objective Lenses: Zoom range of 0.65x - 5.2x. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
Zoom Ratio: 8:1
Total Magnification: 6.5x - 52x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 118mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
Field of View: 36.2mm at 6.5x and 4.7mm at 52x.
Stand: Ergonomic low-profile post stand with stage clips and 100mm black/white stage plate. Top of post on stand is 12" high.
Specimen Stage: Includes 100mm black and white stage plate and two stage clips.
Focusing: Coarse focusing holder.
Illumination: LED dual pipe illuminator clamps onto post stand. 110~240V power supply. Variable intensity control. Each self-supporting dual pipe is 24" in length and contains 3W LED.
Camera: Select when ordering from four options on the table below for the camera.
Software Calibration: Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer is available for purchase separately.

Camera	Megapixels	Pixel Size	Frames Per Second	Sensor	Software
DCM5.3	5.1	2.0µm x 2.0µm	20fps @ 2592x1944 40fps @ 1296x972	1/2.8" Sony Starvis CMOS	Image Capture & Measurement (PC Only)
Subra	Full HD 2.2	5.5µm x 5.5µm	30fps @ Full HD 1920x1080	2/3" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)
Arktur	8	2.4µm x 2.4µm	50fps @ Full HD 1920x1080 30fps @ 3840x2160	2/3" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)
Naos	20	2.4µm x 2.4µm	50fps @ 1800x1200 30fps @ 2700x1800	1" CMOS Back Illuminated	GRYPHAX Image Capture & Measurement (PC & MAC)

Microscope Size: 11.75" W x 12" D x 18" H
Warranty: 5 years on microscope excluding electrical parts, 1 year warranty on camera and on LED pipe light.

FZ8 Stereo Microscope Magnification Chart:

Auxiliary Lens	Working Distance	10x Eyepieces		15x Eyepieces		20x Eyepieces
Auxiliary Lens	Working Distance	Magnification	Field Size	Magnification	Field Size	Magnification	Field Size
1x (None)	118mm	6.5x - 52x	36.2mm - 4.7mm	9.75x - 78x	24.6mm - 3.1mm	13x - 104x	15.4mm - 1.9mm
0.5x	177mm	3.25x - 26x	73.8mm - 9.2mm	4.9x - 39x	49.2mm - 6.2mm	6.5x - 52x	30.8mm - 3.8mm
0.7x	120mm	4.55x - 36.4x	52.7mm - 6.6mm	6.8x - 54.6x	35.2mm - 4.4mm	9.1x - 72.8x	22mm - 2.7mm
1.5x	47mm	9.75x - 78x	24.6mm - 3.1mm	14.6x - 117x	16.4mm - 2.1mm	19.5x - 156x	10.3mm - 1.3mm
2.0x	26mm	13x - 104x	18.5mm - 2.3mm	19.5x - 156x	12.3mm - 1.5mm	26x - 208x	7.7mm - 1.0mm

FZ8D-LPS-LDG
