High Resolution Electronics Inspection Microscope 6.5x-52x

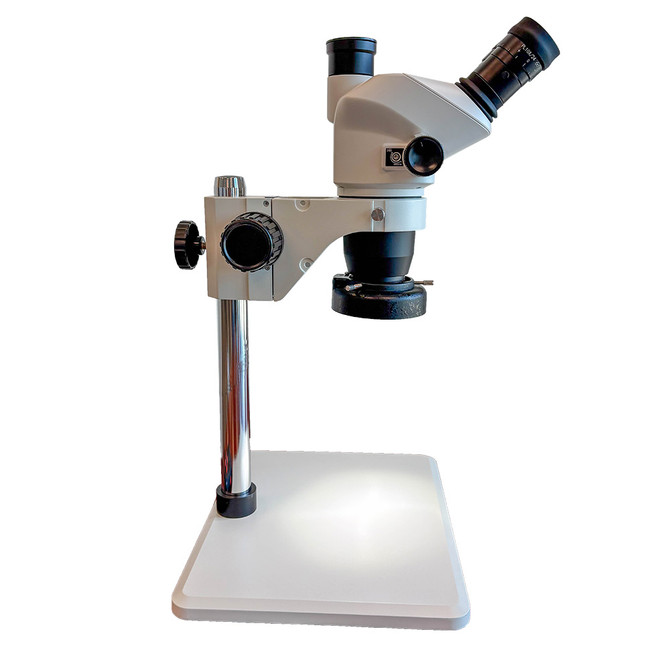

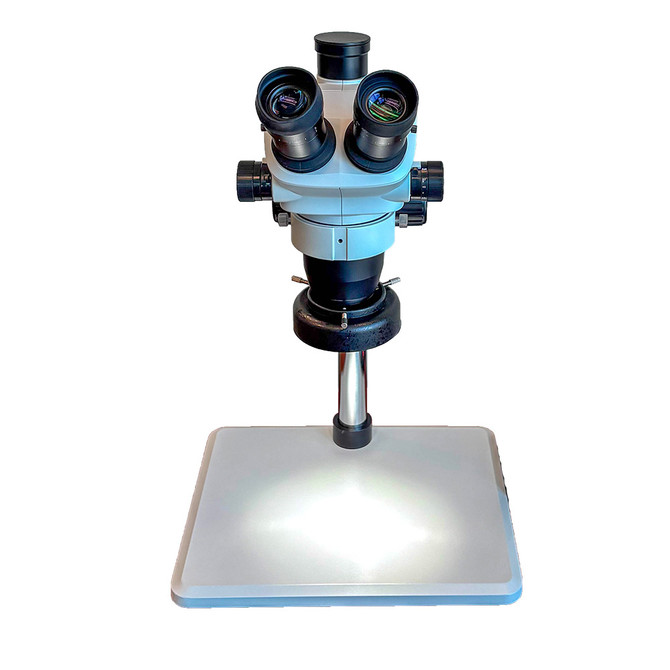

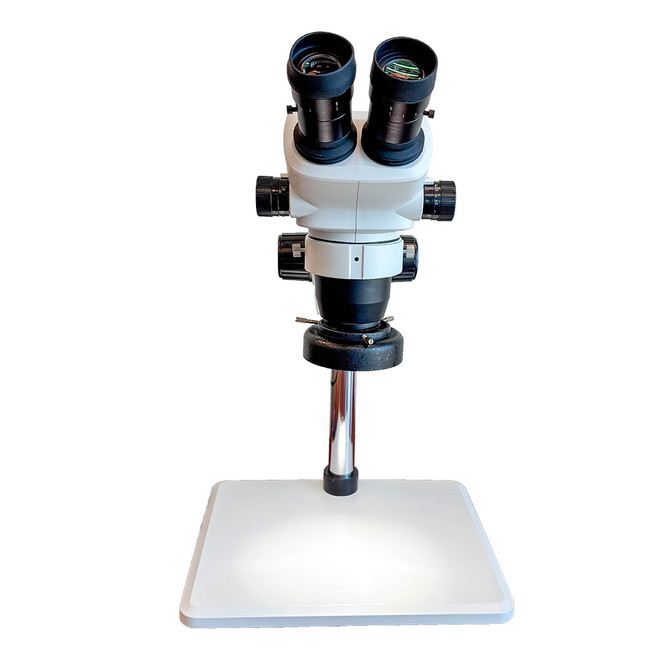

The Fein Optic electronics inspection stereo zoom microscope provides zoom magnification of 6.5x - 52x and is on a track stand with polarizing LED ring light to reduce glare on electronic parts. Magnification range can be adjusted by using different eyepieces or auxiliary lenses.

• Head: Select when ordering from a 45º inclined binocular or trinocular body. Viewing head rotates 360°. On the trinocular viewing head, light is split 50:50 between eyetubes and trinocular port. The digital option is available for purchase here.
• Eyepieces: Includes widefield 10x/24mm high eyepoint eyepieces. Dual diopters ±5 on each eyetube. 15x/16mm and 20x/12mm eyepieces are available and can be ordered separately.
• Objective Lenses: Zoom range of 0.65x - 5.2x. The microscope head can be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 6.5x -52x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart below for options.
• Specimen Stage: Supplied with 95mm black and white stage plate.
• Stand: Low-profile post stand with plain white base, 320mm W x 260mm D (12.6" W x 10.2" D). Top of post on stand is ~350mm (13.8") high, and the maximum distance between the microscope head and the base is ~260mm (10.2").
• Working Distance: 118mm
• Focusing: Coarse focusing. Focus knob is tightness adjustable.
• Illumination: LED polarizing ring light to reduce glare. 120 LED lights provide cool, bright illumination. Light intensity rheostat control 0-100%. Rotatable analyzer 360º, polarizer drops into slot and is removable. 100~240V, UL and CE certified.
• Size & Weight: 12.6" x 12" x 13.4" H, 12 lbs.
• Warranty: 5 year warranty on microscope excluding electrical parts.
• Instruction Manual

EI-FZ8-SLK
