High Resolution Electronics Inspection Boom Microscope 6.5x-52x

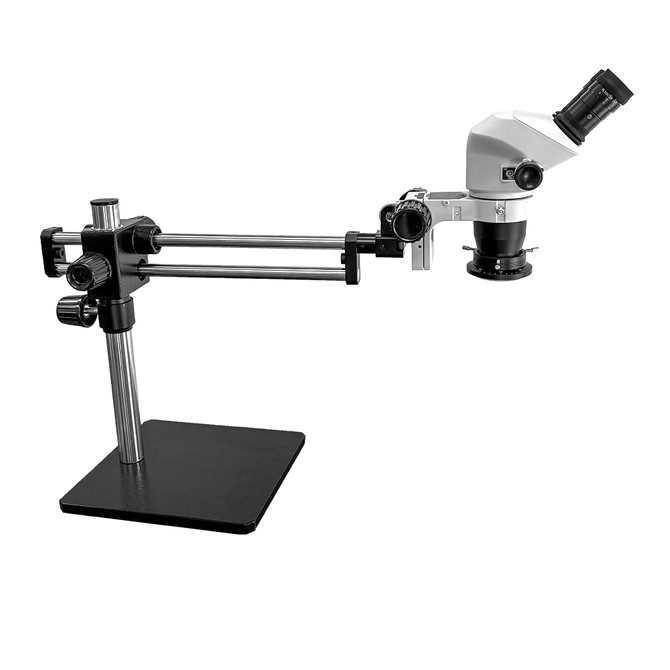

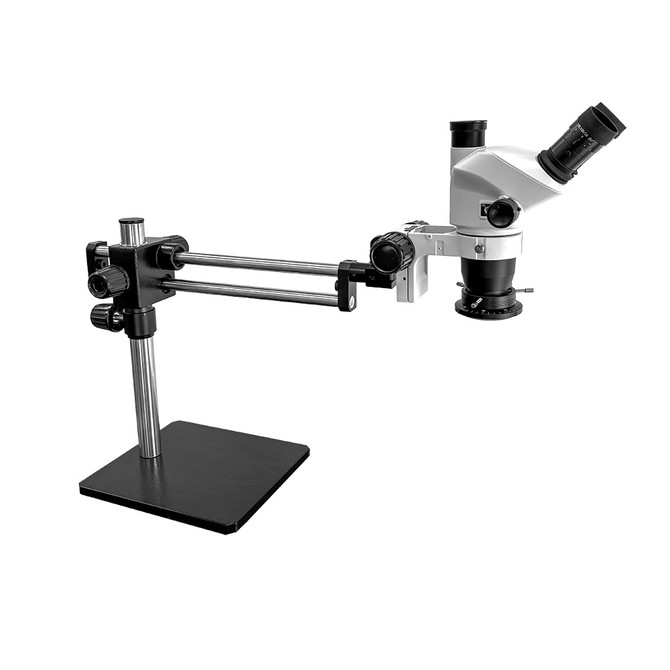

The Fein Optic electronics inspection stereo zoom microscope provides zoom magnification of 6.5x - 52x and is on a boom stand with polarizing LED ring light to reduce glare on electronic parts. Choose from a trinocular or binocular viewing head. Magnification range can be adjusted by using different eyepieces or auxiliary lenses.

• Head: 45º inclined binocular or trinocular body. Viewing head rotates 360°. When beam splitter is engaged on trinocular model light is split between left eyetube and trinocular port, while right eyetube goes dark.
• Eyepieces: Includes widefield 10x/22mm high eyepoint eyepieces. Dual diopters ±5 on each eyetube. 15x/16mm and 20x/12mm eyepieces are available and can be ordered below.
• Objective Lenses:  Zoom range of 0.65x - 5.2x. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 6.5x -52x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart below for options.
• Stand: Boom stand base is 11.4" x 10.2" x 1.1". Maximum distance from vertical post to the end of the base is 8.9". Vertical post is 15.1" tall. An extension post can be added.
• Working Distance: 100mm
• Focusing: Coarse focusing. Focus knob is tightness adjustable.
• Illumination: LED polarizing ring light to reduce glare. 120 LED lights provide cool, bright illumination. Light intensity rheostat control 0-100%. Rotatable analyzer 360º, polarizer drops into slot and is removable. 100~240V, UL and CE certified.
• Size & Weight: 11.4" x 10.2" x 15" H, 35 lbs.
• Warranty: 5 year warranty on microscope excluding electrical parts and 1 year warranty on camera.
• Instruction Manual

 EI-FZ8-BMSQ
