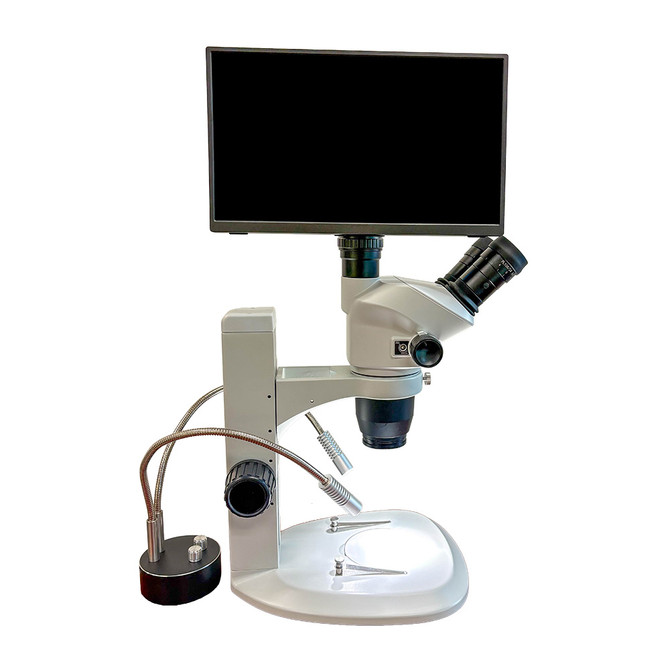

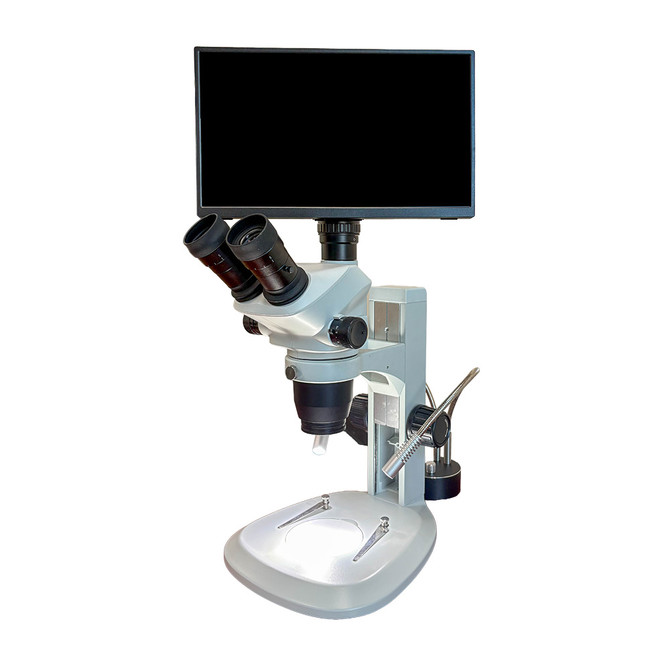

HD Digital Visual Measurement Microscope 6.5x - 52x

The visual measurement microscope has detent for repeatable measuring purposes. When ordering select a LED ring light or LED dual pipe lights for your microscope system. HD camera and HD monitor provide a live image where you can make measurements directly on the HD monitor, or on a PC using the included software.

• Stereo Microscope Body : 45º inclined viewing head rotates 360º. Trinocular microscope with 0.65x - 5.2x zoom. Beam splitter sends light to the left eyetube and trinocular port when engaged. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Eyepieces: Includes widefield 10x eyepieces, FN24 with ±5 diopter adjustment on each eye.
• Total Magnification Range options: 6.5x - 52x. Alternative magnifications can be obtained using an auxiliary lens.
• Working Distance: 100mm
• Stand: Track stand includes two stage clips. Stand is ergonomic, with low-profile base. Includes black/white stage plate.
• Focusing: Rack and pinion focusing controls, 120mm focusing stroke.
• Illumination: Your choice of LED ring light or LED dual pipe light. Select when ordering.
• Camera: Includes 0.5x c-mount adapter and HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to SD card. Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Image capture to SD Card. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. HDMI direct connection to monitor.
• LCD HD Monitor: 13" LCD HDMI monitor 1080p. LED backlight. Monitor mounts directly to HD camera and includes 110~240V power cord and HDMI cable.
• Warranty: Five year warranty excluding electrical parts. Camera, monitor and illuminator have 1-year warranty.
