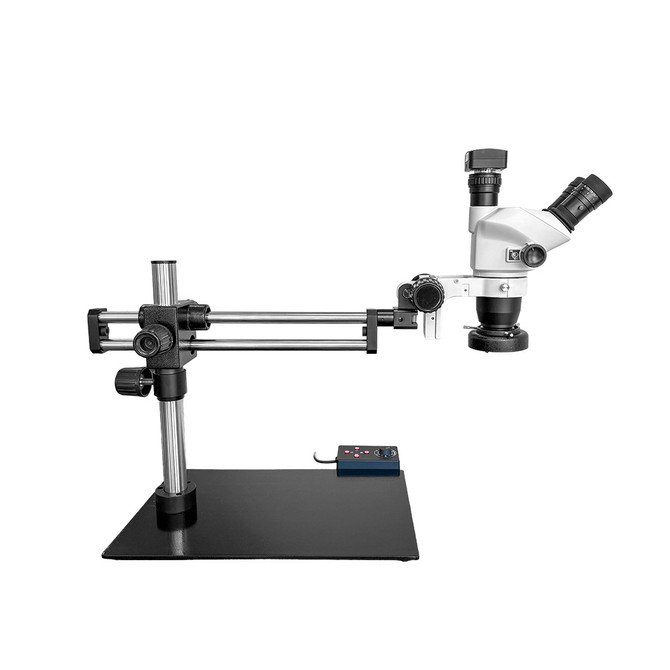

FZ8D-BBRB Ball Bearing Boom Stereo Digital Zoom Microscope

Fein Optic provides high quality optics with 6.5x - 52x zoom magnification. The FZ8D-BBRB includes a digital camera. The microscope is on a ball bearing boom stand with a rectangular base and a 4 quadrant LED ring light.

• Viewing Head: Trinocular 45° inclined viewing head rotates 360°. This microscope includes a c-mount adapter. Light is split 50:50 between eyetubes and trinocular port.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 118mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Includes coarse focusing holder.
• Camera: Includes USB3.0 5.1 mega pixel camera with software. Software can be used to capture and save images (PC or MAC) or make measurements (PC only).
• Illumination: Includes 4-quadrant LED ring light and required ring light adapter.
• Stand size: Ball bearing boom stand has a vertical post that is 380mm (15") tall and has a locking ring on it. The outside diameter of the vertical post is 37mm. The 2 horizontal poles are 570mm (22.4") long and each have a diameter of 20mm. The ball bearings provide smooth movement along the horizontal axis.
• Base Size: Base dimensions are 300mm W (11.8") x 450mm D (17.7") x ~10mm H (~0.4").
• Warranty: 5 year warranty for microscope excluding electrical parts, 1 year warranty for ring light and camera.
