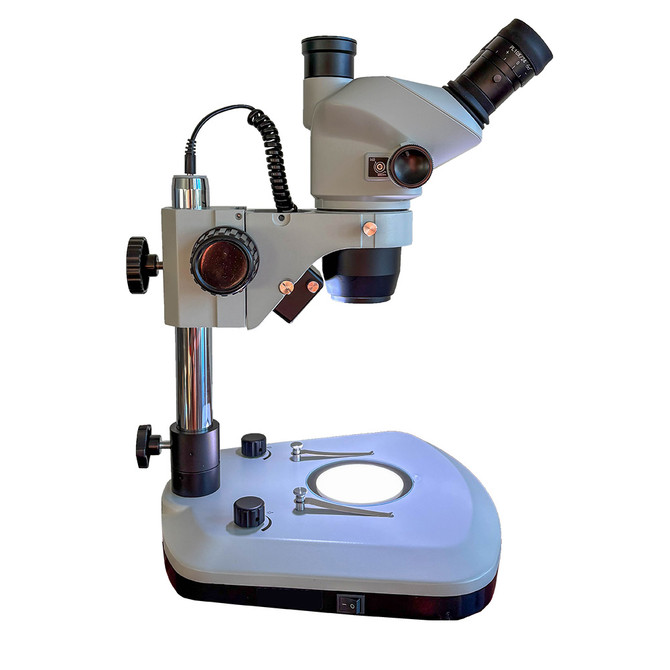

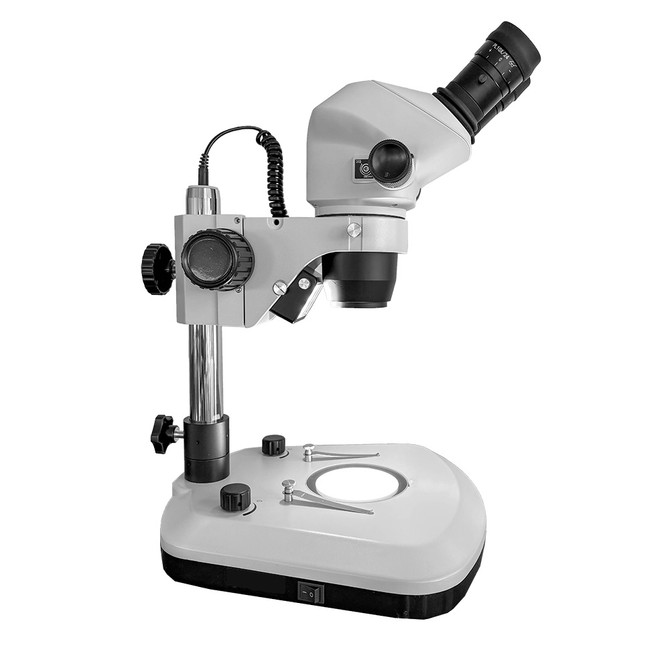

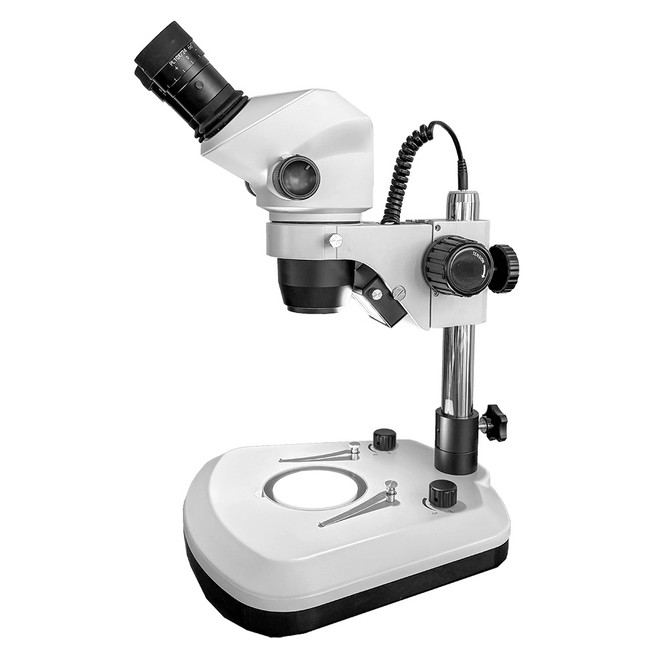

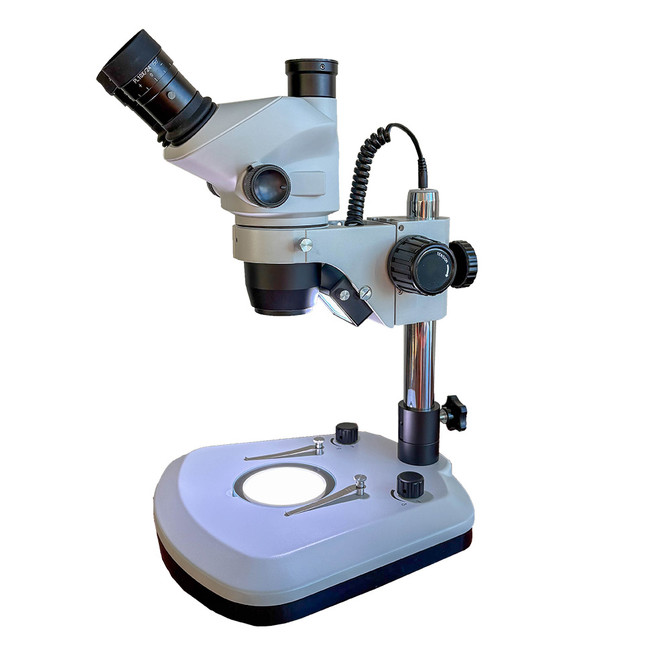

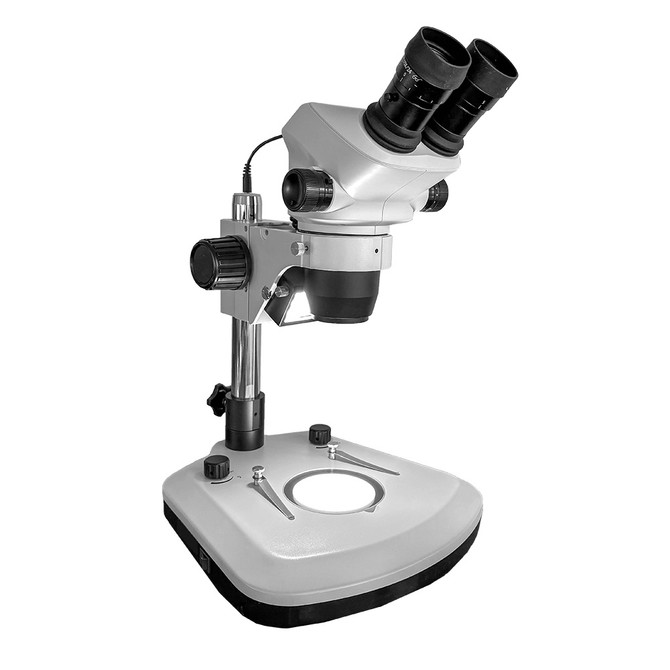

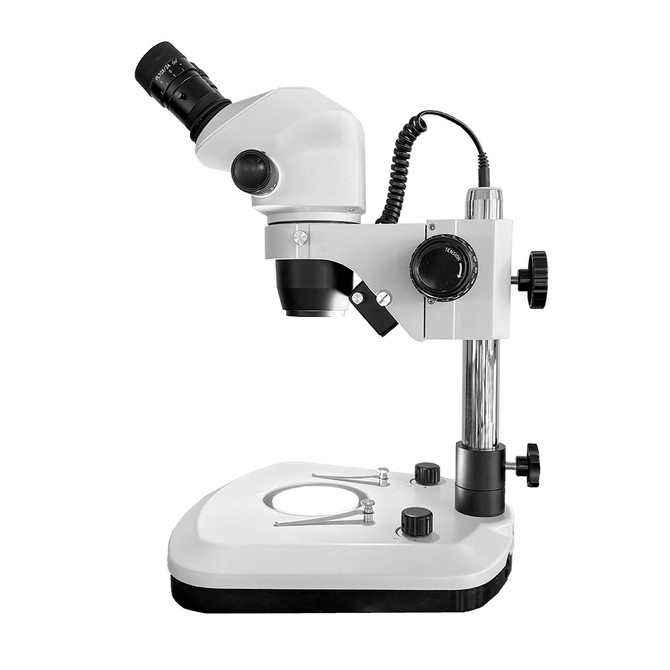

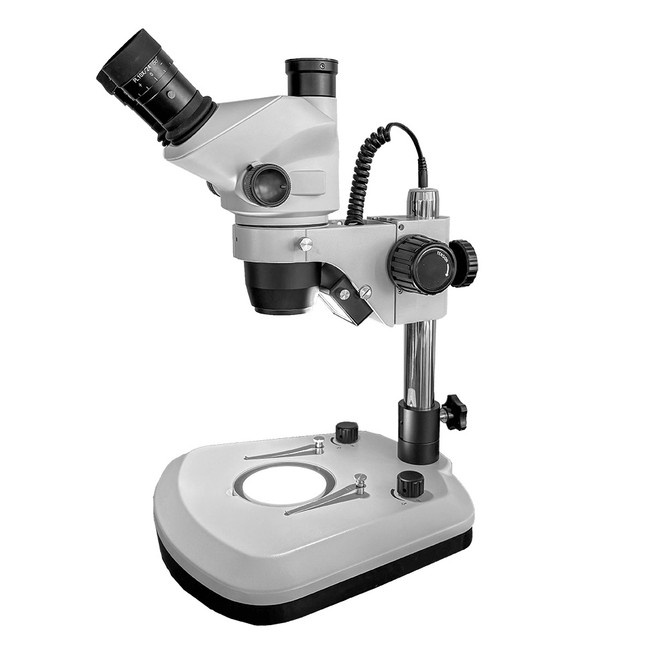

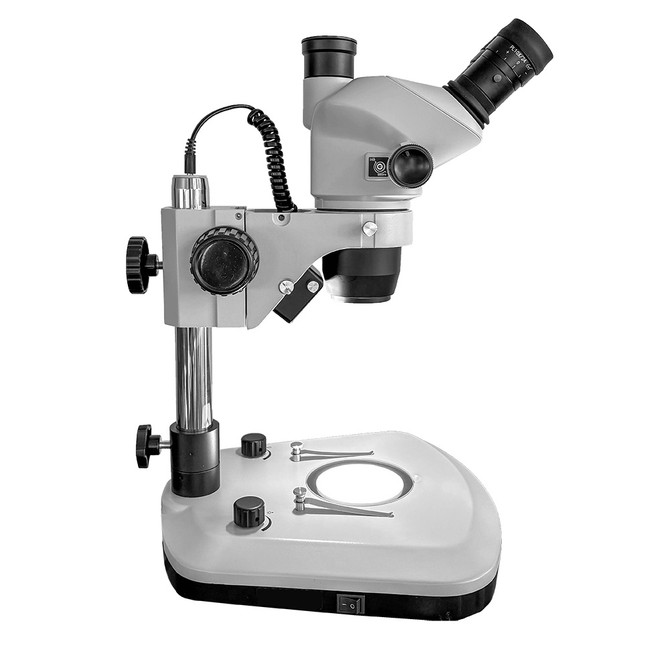

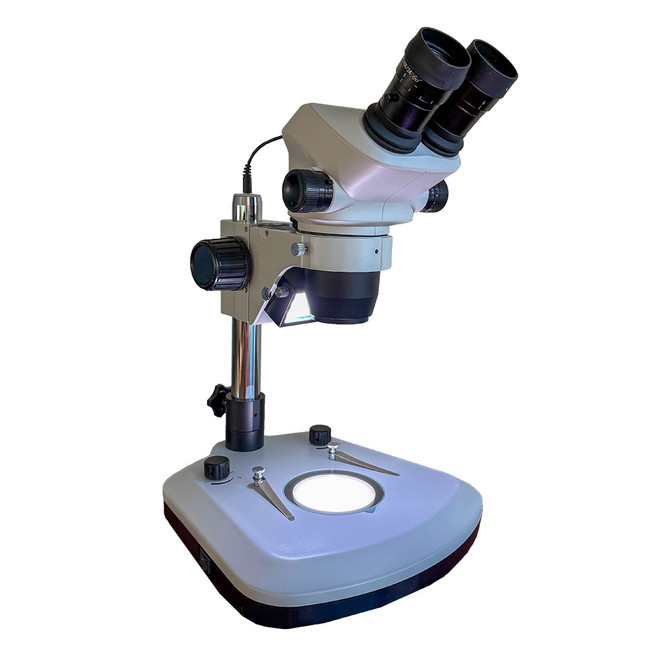

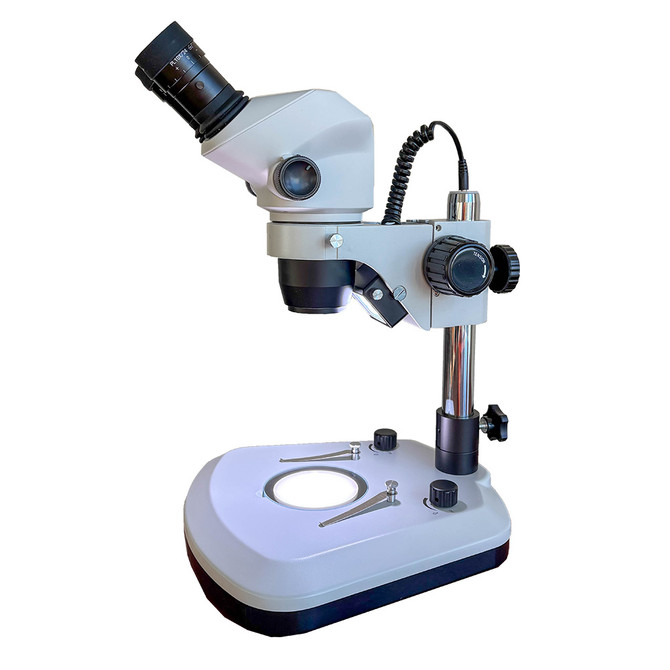

FZ8 Stereo Zoom Mud Logging Microscope

This mud logging microscope manufactured by Fein Optic provides 6.5x - 52x magnification. The microscope is on a post stand and has bright LED top and bottom lighting.

• Viewing Head: 45° inclined viewing head rotates 360°. Your choice of binocular or trinocular. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Specimen Stage: Supplied with a 100mm glass stage plate. Includes two locked-on stage clips.
• Stand: Post stand with transmitted and reflected LED illumination. Top light has separate rheostat control from bottom light.
• Focusing: Coarse focusing with tension adjustable focus knobs.
• Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. 100 ~ 240V.
• Size: 11.5" W x 12" D x 14.75" H, 9.2lbs
• Warranty: 5 year warranty on microscope excluding electrical components.
