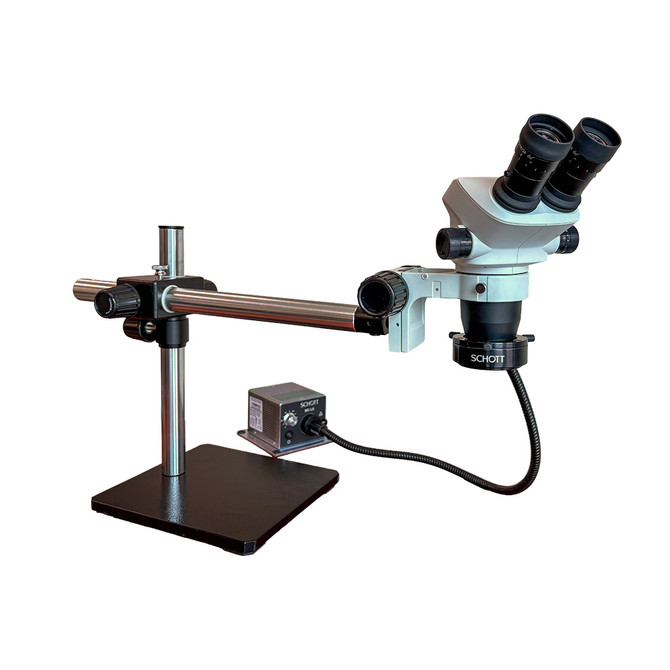

FZ8 Microsurgery Training Microscope with Ring Light

The FZ8 stereo microscope with 8:1 zoom ratio providing excellent image contrast and color accuracy. The Greenough Optical System provides superior images, and the SCHOTT ColdVision MC-LS with ring light provides shadow free LED illumination.

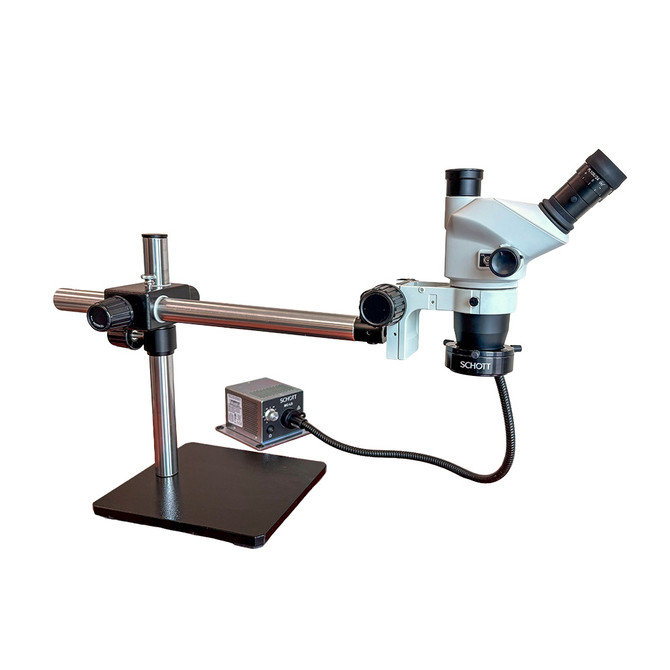

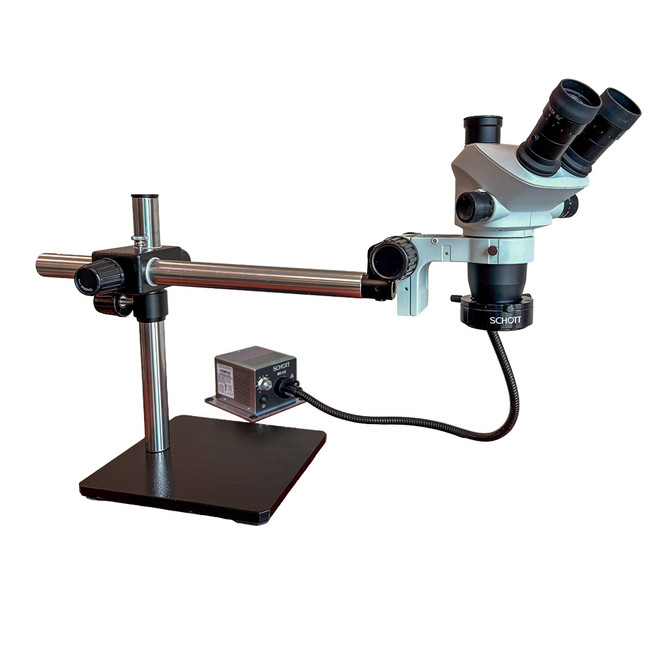

• Viewing Head: Choose when ordering from a 45º inclined binocular or trinocular Greenough stereo microscope body. On the trinocular viewing head, light is split 50:50 between eyetubes and trinocular port.
• Detent: The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 3.25x - 26x with included 0.5x auxilary lens.
• Zoom Ratio: 8:1
• Total Magnification: 3.25x - 26x with included 0.5x auxilary lens.
• Stand: Boom stand with square base. Horizontal post is 20.9" long, vertical post is 15" tall. Vertical post has a locking ring. Base dimensions are 11.2" x 32". Weight is 48lbs.
• Working Distance: 177mm when using 0.5x auxiliary lens.
• Focusing: Includes pin mount coarse focusing holder.
• Illumination: SCHOTT ColdVision MC-LS Ring Light illuminator with ring light diameter of 47 to 62mm and 5400K cool white light. Light box provides continuous dimming, fan cooling, temperature monitoring, high resistance to vibration and shock.
• Warranty: 5 years for microscope body, excluding electrical parts. 1 year warranty on camera and monitor. 2 years for Schott illumination.
• View the SCHOTT ColdVision MC-LS Data Sheet
  View the SCHOTT ColdVision Ring Lights Data Sheet
