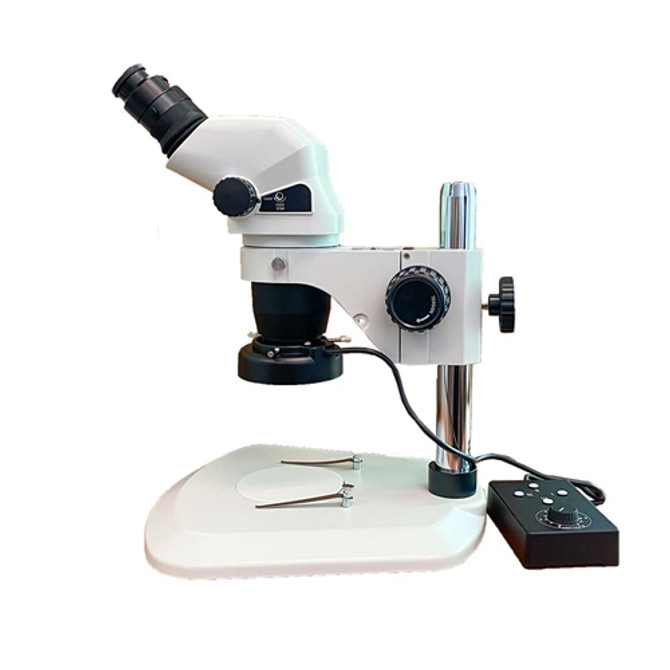

FZ8 Fein Optic High Resolution Stereo Zoom Microscope

The FZ8 high resolution stereo zoom microscope on an ergonomic post stand with an LED 4 quadrant ring light provides 6.5x - 52x zoom magnification and includes the following:

• Microscope Viewing Head: 45º inclined viewing head rotates 360º. Select when ordering from a binocular or trinocular viewing head. For the trinocular option, the beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark.
• Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 24 with ±5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 0.65x - 5.2x. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 6.5x - 52x.  Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens used. See magnification chart below.
• Field of View: 36.9mm at 6.5x and 4.6mm at 52x.
• Stand: Ergonomic low-profile post stand with stage clips and 100mm black/white stage plate. Top of post on stand is 12" high.
• Specimen Stage: Includes 100mm black and white stage plate and two stage clips.
• Focusing: Coarse focusing holder.
• Illumination: 4-quadrant LED ring light with 72 LED lights. ESD free protection. UL and CSA certified. Four quadrants and rheostat control help reduce glare. Includes ring light adapter.
• Microscope Size: 11.75" W x 12" D x 18" H
• Warranty: Microscope warranty is 5 years excluding electrical parts, and the LED ring light has a 1 year warranty.

FZ8 Stereo Microscope Magnification Chart:

FZ8B-LPS, FZ8T-LPS
