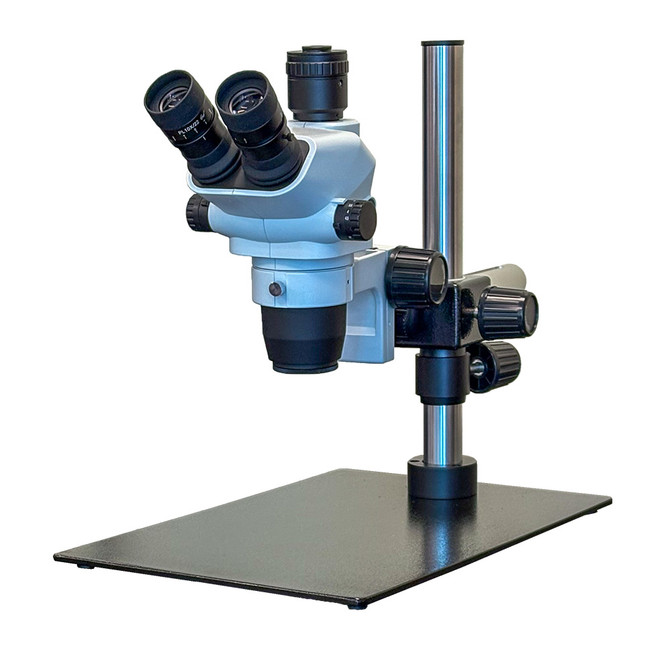

FZ8-BSRB Boom Stereo Zoom Microscope

Fein Optic stereo microscope with 6.5x - 52x zoom magnification provides high quality optics. Select when ordering from a binocular or trinocular option. All microscopes are on a boom stand with a solid base and a 4 quadrant LED ring light.

• Viewing Head: Choose from a binocular or trinocular 45° inclined viewing head that rotates 360°. For trinocular head, when beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens used. See magnification chart below.
• Stand: Boom stand has a solid rectangular base (300mm x 450mm). The height-adjustable vertical column is 400mm high. The distance of the reach of the horizontal arm of the boom stand is adjustable.
• Focusing: Includes coarse focusing holder.
• Illumination: 4-quadrant LED ring light has 4 zones whose intensity can be independently controlled. Includes the required ring light adapter.
• Warranty: Microscope has 5 year warranty. Ring light has 1 year warranty.

FZ8-BSRB, FZ8T-BSRB
