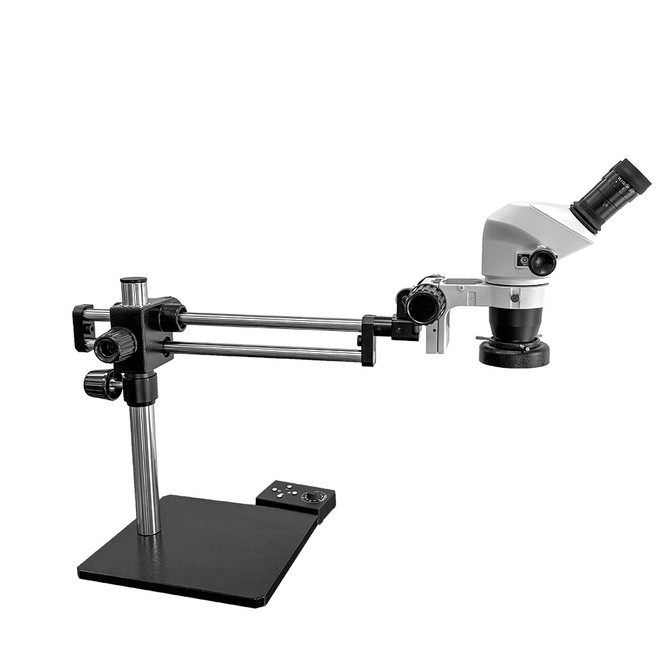

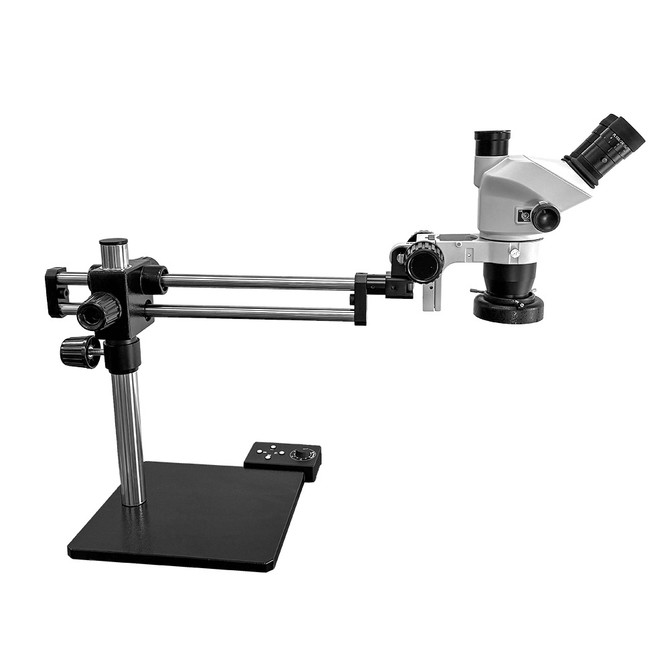

FZ8-BMSQ Boom Stereo Zoom Microscope

Fein Optic provides high quality optics with a 6.5x - 52x zoom magnification. Available in binocular, trinocular, or digital. Microscope is on a solid-base boom stand with a 4-quadrant LED ring light. The complete microscope system includes:

• Viewing Head: 45° inclined viewing head rotates 360°. Your choice of binocular, trinocular, or digital. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Included 10x eyepieces accept a 24mm diameter reticle. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Includes coarse focusing holder.
• Camera: (included only with Digital option) 5.1 megapixel digital camera with a USB 3.0 port has basic image capture and measurement software for PC, MAC, or Linux. Image capture up to 2592 x 1944. Captures motion video at 20 frames per second (fps) for 2592 x 1944 resolution and at 40 fps for 1296 x 972 resolution. Digital camera has 1/1.28" CMOS sensor.
• Illumination: 4-quadrant LED ring light, which includes the required ring light adapter.
• Stand size: Boom stand with vertical post that is 15" tall. Vertical post has a lock ring. Horizontal post is 21.25" from end to end.
• Base size: Base dimensions are 11.4" x 10.2" x 1.1", 35lbs.
• Warranty: 5 year warranty for microscope excluding electrical parts and 1 year warranty for camera.

FZ8B-BMSQ, FZ8T-BMSQ, FZ8D-BMSQ
