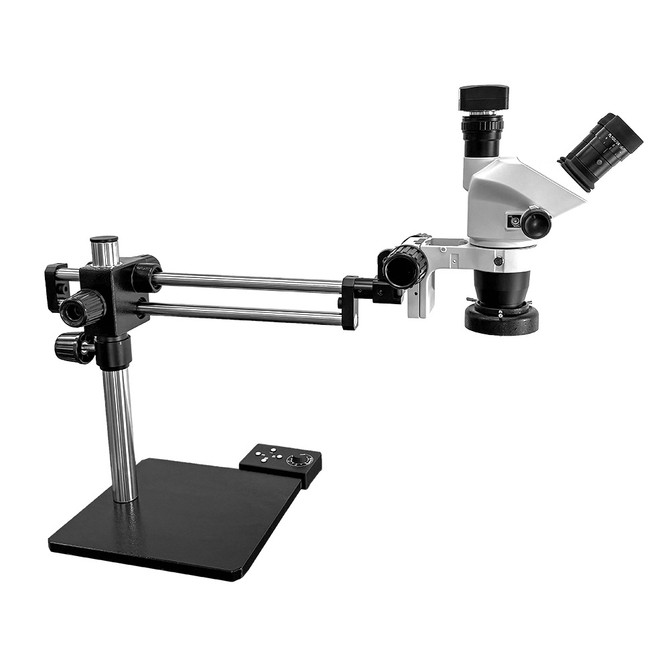

FZ8-BBSQ Ball Bearing Boom Stereo Zoom Microscope

Fein Optic provides high quality optics with 6.5x - 52x zoom magnification. Available in binocular, trinocular, or digital on a ball-bearing boom stand with a 4 quadrant LED ring light.

• Viewing Head: 45° inclined viewing head rotates 360°. Your choice of binocular, trinocular, or digital options. On the trinocular viewing head, light is split 50:50 between eyetubes and trinocular port. The digital option includes a 5.1 mp digital camera and a c-mount adapter.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 118mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• USB Camera: (Included with digital option ONLY.) Digital option includes a 5.1mp (2592x1944) USB3.0 microscope camera. Included software allows capture of still images and video. Software allows annotations, measurements and image correction. Windows PC or MAC (please note measurement feature does not work on a MAC).
• Focusing: Includes coarse focusing holder.
• Stand: Ball bearing boom stand with vertical post that is 15" tall. Vertical post has a lock ring. Horizontal posts have smooth ball bearing movement and are 22.4" from end to end.
• Illumination: 4-quadrant LED ring light with ring light adapter is included.
• Size: Base dimensions are 11.2" x 10.2" x 1.3", 59lbs.
• Warranty: 5 year warranty on microscope excluding electrical components. 1 year warranty on camera (applies only to digital option).
