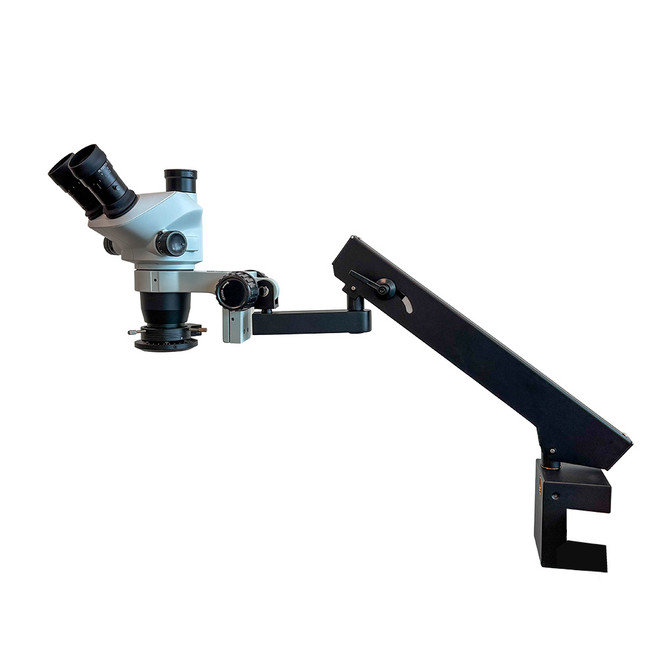

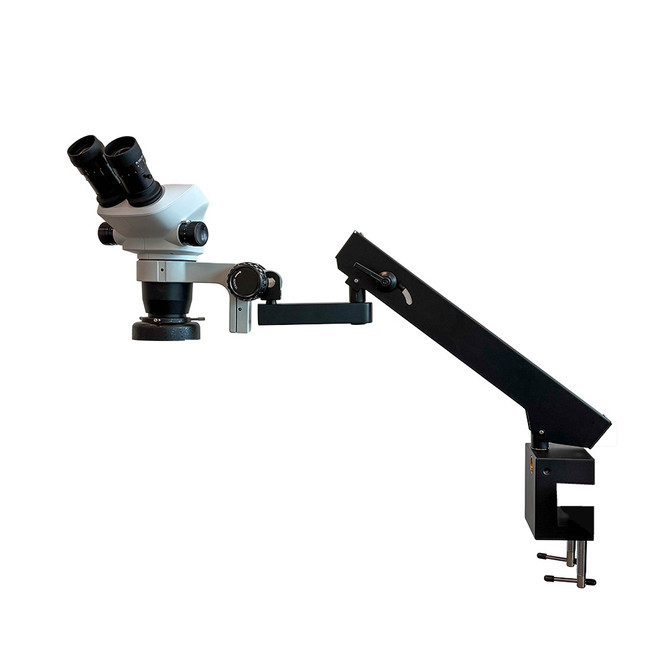

FZ8-AARM Articulated Arm Stereo Zoom Microscope

Fein Optic provides high quality optics with 6.5x - 52x zoom magnification. Available in binocular or trinocular on an articulated arm stand with your choice of a clamping articulated arm stand or a clamping articulated arm stand that also has a vertical pole, as well as your choice of illumination.

• Viewing Head: 45° inclined viewing head rotates 360°. Your choice of binocular, trinocular, or digital. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark. Digital option includes c-mount adapter.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Includes coarse focusing holder.
• Stand: Short articulated arm clamping stand with flexible arm vertical travel distance of 10.4", or articulated arm stand on vertical clamping post.
• Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.
• Illumination: Includes 4-quadrant LED ring light. If you prefer a different illuminator please contact us for a quote.

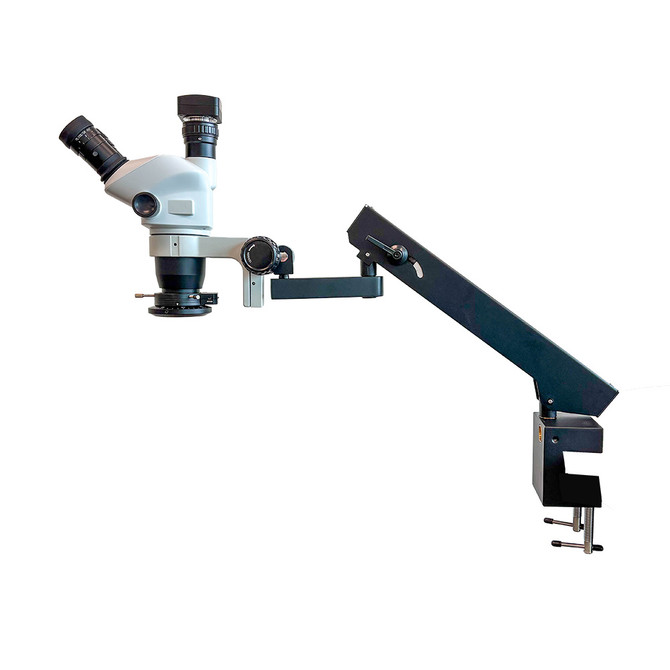

• Digital: The digital option includes 0.5x c-mount adapter and USB 5mp camera with software for image measurement and capture.
• Warranty: 5 year warranty on microscope excluding electrical components.

Fein Optic Part #s: FZ8-AARM-CLAMP, FZ8T-AARM-CLAMP, FZ8D-AARM-CLAMP, FZ8-AARM-VERTICAL, FZ8T-AARM-VERTICAL, FZ8D-AARM-VERTICAL
