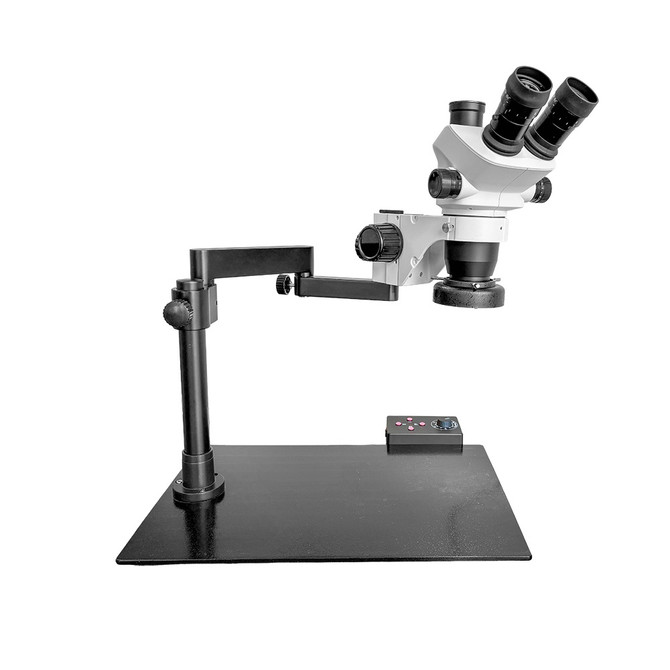

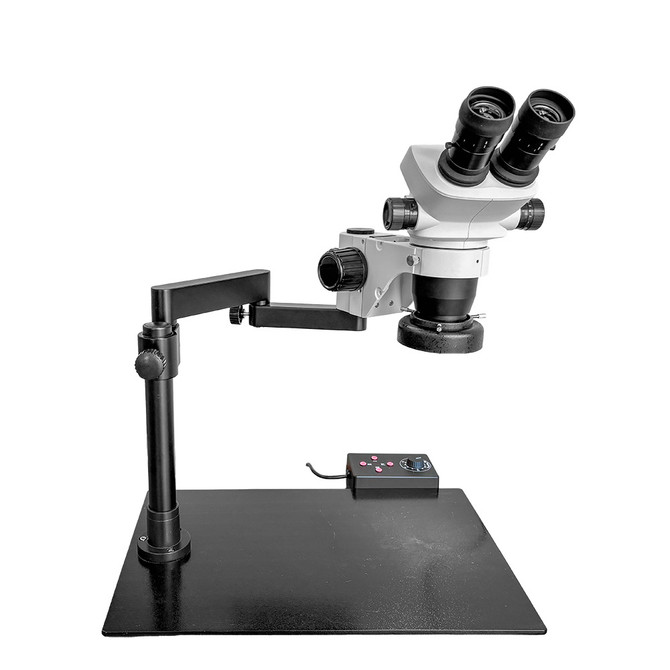

FZ8-AARB Articulated Arm Stand Stereo Zoom Microscope

Fein Optic provides high quality optics with 6.5x - 52x zoom magnification. The FZ8-AARB has your choice of a binocular or trinocular viewing head. The microscope is on an articulated arm stand with a rectangular base and a 4 quadrant LED ring light.

• Viewing Head: Choose from a binocular or trinocular 45° inclined viewing head that rotates 360°. On the trinocular viewing head, light is split 50:50 between eyetubes and trinocular port.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 118mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Includes coarse focusing holder.
• Illumination: Includes 4-quadrant LED ring light and required ring light adapter.
• Stand size: Articulated arm stand has an arm with 2 segments with a maximum reach of ~330mm (13") when fully extended. Post is 32mm in diameter and 280mm (11") high.
• Base Size: Base dimensions are 300mm W (11.8") x 450mm D (17.7") x ~10mm H (~0.4").
• Warranty: 5 year warranty for microscope excluding electrical parts. Ring light has 1 year warranty.
