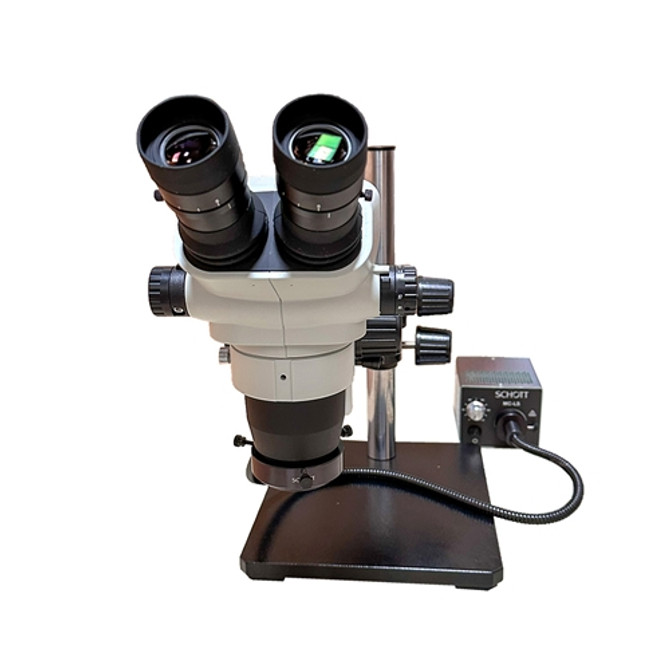

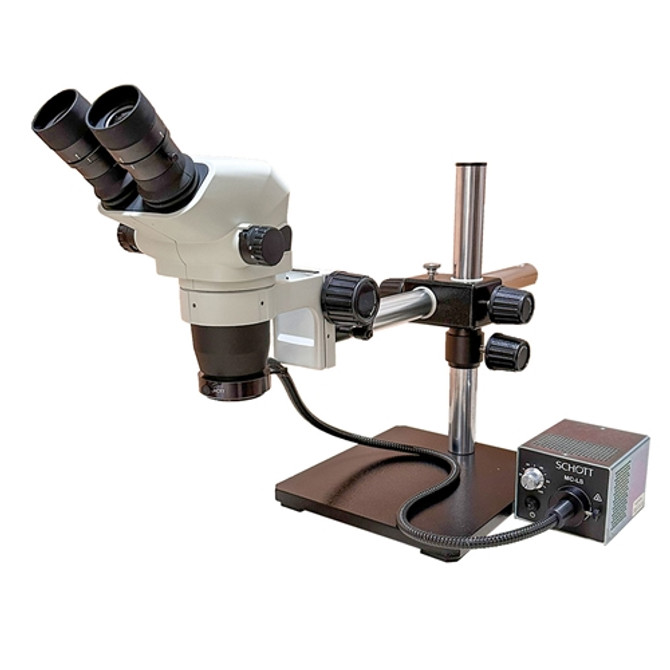

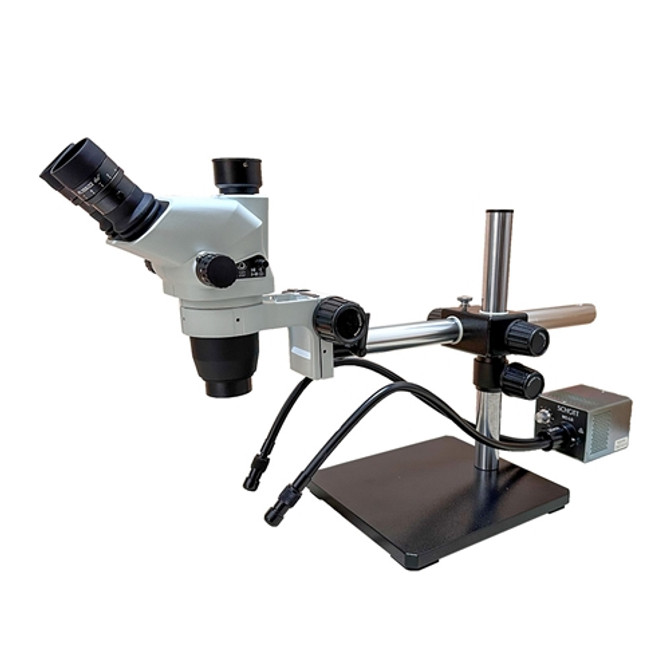

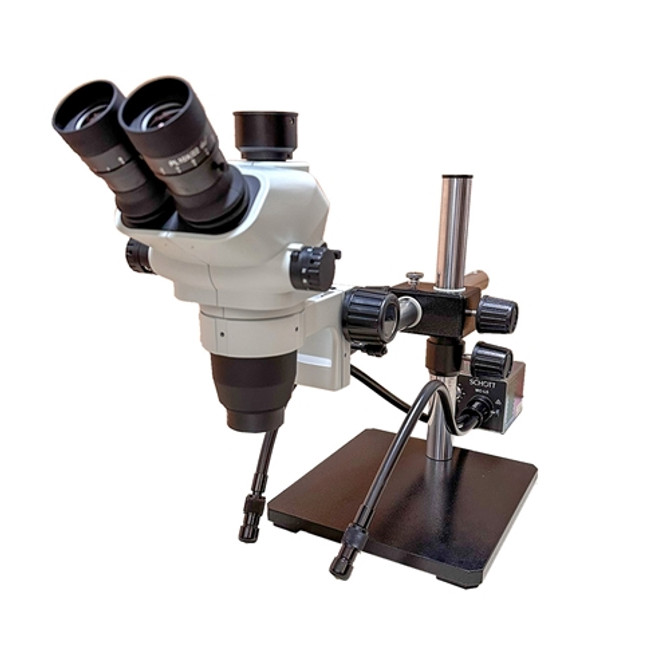

FZ6 Microsurgery Training Microscope with Ring Light
The FZ6 stereo microscope with 8:1 zoom ratio providing excellent image contrast and color accuracy. The Greenough Optical System provides superior images, and …
SKU:
$3,375.00 - $3,595.00
The FZ6 stereo microscope with 8:1 zoom ratio providing excellent image contrast and color accuracy. The Greenough Optical System provides superior images, and the SCHOTT ColdVision MC-LS with ring light provides shadow free LED illumination.
- Viewing Head: 45º inclined ergonomic Greenough stereo microscope body. Viewing head rotates 360°. Interpupillary distance adjustment from 54mm - 76mm. Trinocular body has beam splitter 100:0.
- Detent: Click stops for repeatable measuring.
- Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 22mm with +/-5 diopter adjustment on each eye. Eyepieces accept 24mm diameter reticle.
- Objective Lenses: Zoom range of 3.4x - 22.5x with included 0.5x auxilary lens.
- Zoom Ratio: 6.7:1
- Total Magnification: 3.4x - 22.5x with included 0.5x auxilary lens.
- Stand: Boom stand with square base. Horizontal post is 20.9" long, vertical post is 15" tall. Vertical post has a locking ring. Base dimensions are 11.2" x 32". Weight is 48lbs.
- Working Distance: 177mm when using 0.5x auxiliary lens.
- Focusing: Includes pin mount coarse focusing holder.
- Illumination: SCHOTT ColdVision MC-LS Ring Light illuminator with ring light diameter of 47 to 62mm and 5400K cool white light. Light box provides continuous dimming, fan cooling, temperature monitoring, high resistance to vibration and shock.
- Warranty: 5 Years for microscope body. 1 Year warranty on camera and monitor. 2 years for Schott illumination.
- View the SCHOTT ColdVision MC-LS Data Sheet
View the SCHOTT ColdVision Ring Lights Data Sheet
Frequently Bought Together
Please choose options for all selected products
Description
The FZ6 stereo microscope with 8:1 zoom ratio providing excellent image contrast and color accuracy. The Greenough Optical System provides superior images, and the SCHOTT ColdVision MC-LS with ring light provides shadow free LED illumination.
- Viewing Head: 45º inclined ergonomic Greenough stereo microscope body. Viewing head rotates 360°. Interpupillary distance adjustment from 54mm - 76mm. Trinocular body has beam splitter 100:0.
- Detent: Click stops for repeatable measuring.
- Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 22mm with +/-5 diopter adjustment on each eye. Eyepieces accept 24mm diameter reticle.
- Objective Lenses: Zoom range of 3.4x - 22.5x with included 0.5x auxilary lens.
- Zoom Ratio: 6.7:1
- Total Magnification: 3.4x - 22.5x with included 0.5x auxilary lens.
- Stand: Boom stand with square base. Horizontal post is 20.9" long, vertical post is 15" tall. Vertical post has a locking ring. Base dimensions are 11.2" x 32". Weight is 48lbs.
- Working Distance: 177mm when using 0.5x auxiliary lens.
- Focusing: Includes pin mount coarse focusing holder.
- Illumination: SCHOTT ColdVision MC-LS Ring Light illuminator with ring light diameter of 47 to 62mm and 5400K cool white light. Light box provides continuous dimming, fan cooling, temperature monitoring, high resistance to vibration and shock.
- Warranty: 5 Years for microscope body. 1 Year warranty on camera and monitor. 2 years for Schott illumination.
- View the SCHOTT ColdVision MC-LS Data Sheet
View the SCHOTT ColdVision Ring Lights Data Sheet
