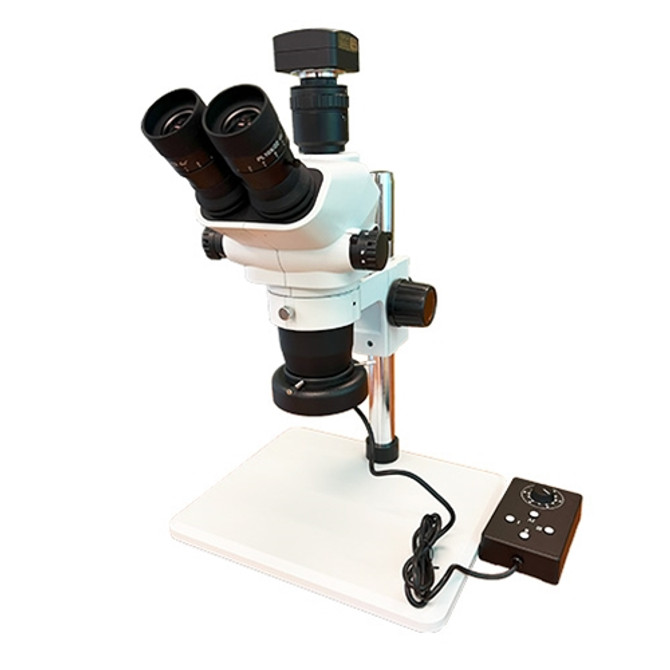

FZ8 Digital Stereo Zoom Microscope with Ring Light

The FZ8 stereo zoom microscope has a magnification range of 6.5x - 52x and is on a plain post stand. The system has a ring light and comes with a digital camera. Select the desired digital camera when ordering.

• Microscope Viewing Head: Trinocular viewing head has a 45º inclined viewing head that rotates 360º. Light is split 50:50 between eyetubes and trinocular port. C-mount is included.
• Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 24 with ±5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 0.65x - 5.2x.
• Zoom Ratio: 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: 6.5x - 52x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details.
• Working Distance: 118mm without auxiliary lens. See the magnification chart below for working distances with various auxiliary lenses.
• Field of View: 36.2mm at 6.5x and 4.7mm at 52x.
• Stand: Low-profile post stand with plain white base, 320mm W x 260mm D (12.6" W x 10.2" D). Top of post on stand is ~350mm (13.8") high, and the maximum distance between the microscope head and the base is ~260mm (10.2").
• Focusing: Coarse focusing holder.
• Illumination: The 4-Quadrant LED ring light has the following specifications:
  • 72 LED lights with four quadrants and rheostat control reduce glare.
  • ESD free protection
  • UL and CSA certified
• Camera: Select from four options on the table below for the camera.

• Microscope Size: 320mm W x 280mm D x 480mm H (12.6" W x 11" D x  18.9" H)
• Warranty: 5 years on microscope excluding electrical parts and 1 year warranty on LED ring and camera.

FZ8 Stereo Microscope Magnification Chart:

Part #: FZ8D-SLK-LEDR4
