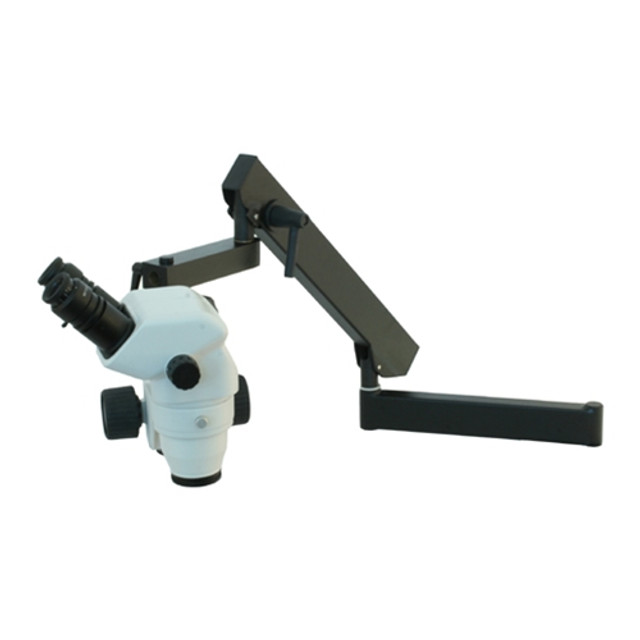

FZ6-AAHB Articulated Arm Stereo Zoom Microscope

Fein Optic provides high quality optics with 6.7x - 45x zoom magnification. Available in binocular or trinocular on an articulated arm stand with a 4 quadrant LED ring light.

• Viewing Head: 45° inclined viewing head rotates 360°. Interpupillary adjustment from 54mm - 76mm. Your choice of binocular or trinocular. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 22mm with ±5 diopter adjustment on each eye. Included 10x eyepieces accept a 24mm diameter reticle. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase below.
• Objectives: Zoom stereo 0.67x - 4.5x provides a zoom ratio of 6.7:1. Clickstops on the zoom dial ensure repeatability while measuring.
• Total Magnification: Zoom range of 6.7x - 45x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Includes coarse focusing holder.
• Stand: Articulated arm stand with a heavy base.
• Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.
• Illumination: 4-quadrant LED ring light with the required light adapter.
• Size: Base dimensions are 11.2" x 10.2" x 1.3", 59lbs.
• Warranty: 5 Year Warranty.

FZ6-AAHB, FZ6T-AAHB
