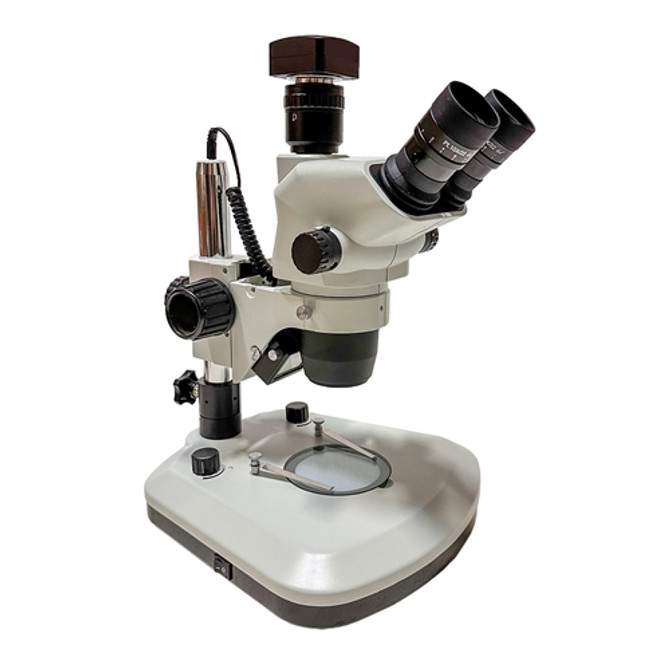

FPFZ8 Digital Filter Patch Inspection LED Stereo Microscope

The FPFZ8D digital stereo zoom binocular microscope has been created for oil filter patch inspection and image capture. The stand has a built-in top and bottom LED illumination, which helps examine particles. The higher magnification package has been created with working distance in mind - so that you can still fit filter patches under the microscope without losing much working distance and without losing quality magnification.

• Stereo Microscope Body: Zoom ratio of 8:1. Greenough system designed for harsh environments of production and testing. Includes c-mount adapter for camera connection.
• Viewing head: Includes trinocular head, eyetubes are inclined 45° and head rotates 360°. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x. Depending which magnification package is selected below, widefield 10x or 15x eyepieces are included. ±5 diopter on each eyetube.
• Total Magnification Range package options: Choose from the following:

• Stand: Post stand with transmitted and reflected LED illuminators. Includes dust cover.
• Focusing: Coarse focusing with tension adjustable focus knobs.
• Illumination: Built in top and bottom LED lights. Each has its own intensity control and on/off switch.
• Measuring: Includes eyepiece reticle (10mm / 100 divisions) and stage micrometer 1mm / 100 divisions.
• Camera: Includes 5 megapixel camera and software for image capture and measurement.
• Warranty: Five year warranty excluding electrical parts on microscope, 1-year warranty on camera.
