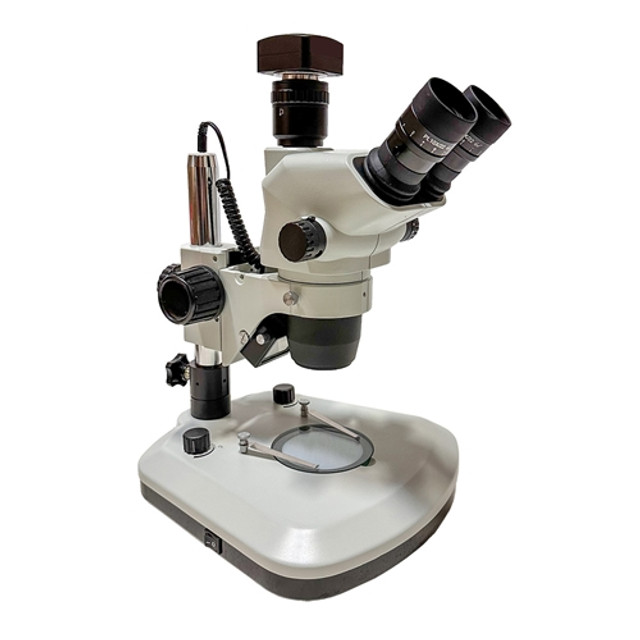

FPFZ6 Filter Patch Inspection LED Stereo Microscope

The FPFZ6-ILS2 stereo zoom binocular microscope has been created for oil filter patch inspection. The stand has a built-in top and bottom LED illumination, which helps examine particles. The higher magnification package has been created with working distance in mind - so that you can still fit filter patches under the microscope without losing much working distance and without losing quality magnification.

• Stereo Microscope Body: Zoom ratio of 6.7:1. Greenough system designed for harsh environments of production and testing.
• Eyepieces: Includes binocular head, eyetubes are inclined 45° and head rotates 360°. Depending which magnification package is selected below, widefield 10x or 15x eyepieces are included. +/-5 diopter on each eyetube. Interpupillary adjustment from 54mm - 76mm.
• Total Magnification Range package options: Select when ordering.

• Stand: Post stand with transmitted and reflected LED illuminators. Includes a 100mm glass stage plate and two locking stage clips.
• Focusing: Coarse focusing with tension adjustable focus knobs.
• Illumination: Built in top and bottom LED lights. Each has its own intensity control and on/off switch.
• Measuring: Includes eyepiece reticle (10mm / 100 divisions) and stage micrometer that has two sections, 1mm / 100 divisions and 10mm / 100 divisions.
• Warranty: Five year warranty excluding electrical parts.
