Fein Optic FZ8-LCD-SLK HD Stereo Zoom Microscope

The FZ8-LCD high resolution stereo zoom microscope provides 6.5x - 52x zoom magnification on a plain post stand with your choice of a LED ring light or dual pipe lights. This system comes with a HD monitor and a digital camera.

• Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Light is split 50:50 between eyetubes and trinocular port. Includes c-mount adapter.
• Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 24 with ±5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 0.65x - 5.2x.
• Zoom Ratio: 8:1. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification: 6.5x - 52x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details.
• Working Distance: 118mm without auxiliary lens. See the magnification chart below for working distances with various auxiliary lenses.
• Field of View: 36.2mm at 6.5x and 4.7mm at 52x.
• Stand: Low-profile post stand with plain white base, 320mm W x 260mm D (12.6" W x 10.2" D). Top of post on stand is ~350mm (13.8") high, and the maximum distance between the microscope head and the base is ~260mm (10.2").
• Focusing: Coarse focusing holder
• Illumination: Choose from LED 4 quadrant ring light or LED dual lights. (Select when ordering.) The lights have the following specifications:

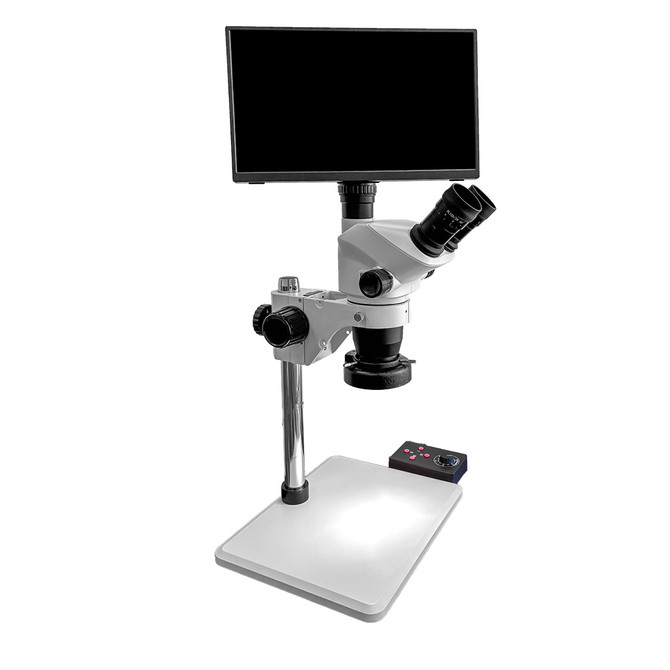

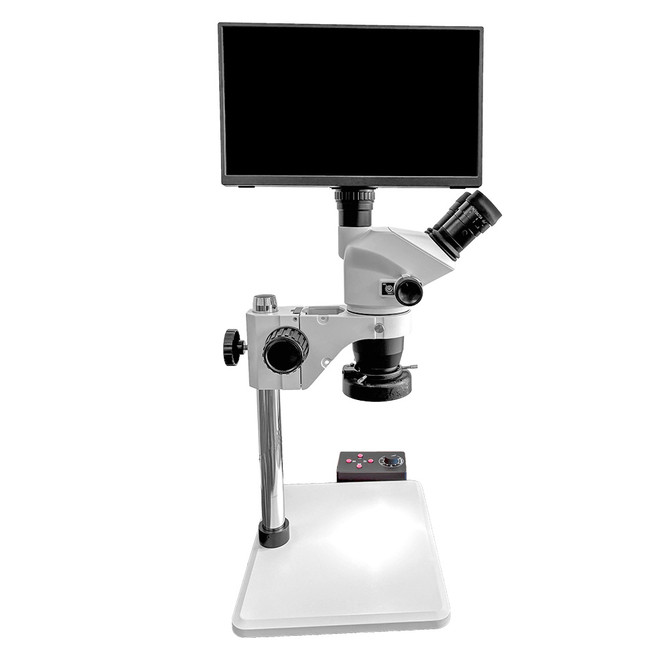

  • 4-quadrant LED ring light has 72 LED lights. ESD free protection. UL and CSA certified. Four quadrants and rheostat control help reduce glare. Includes ring light adapter.

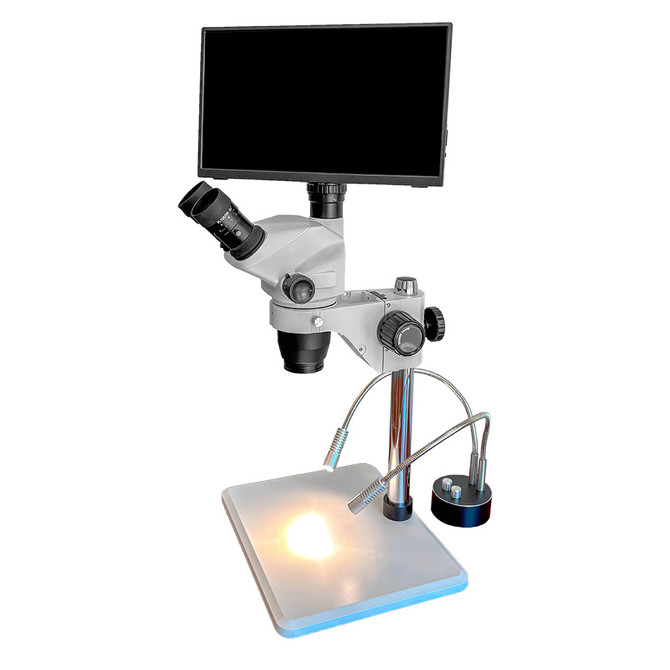

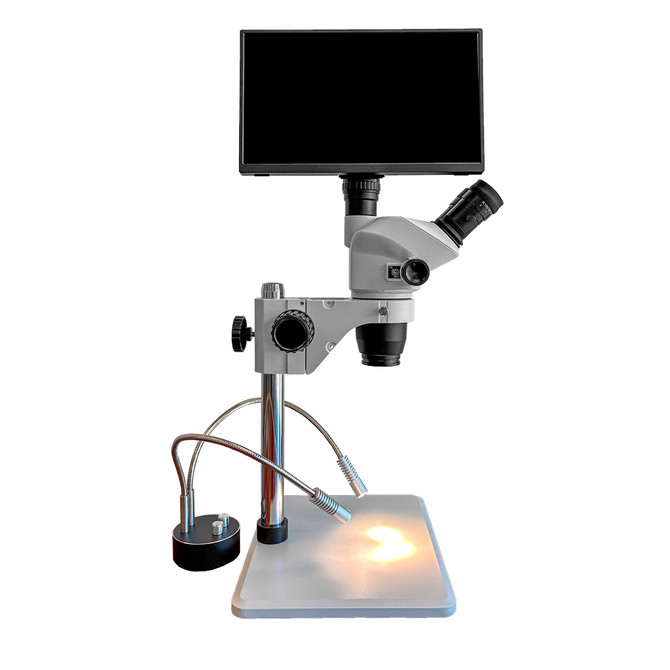

  • LED high intensity dual pipe illuminator has 2 self-supporting pipes 24" in length. Each pipe light contains 3w LED light. Bulb life expectancy is 20,000 hours. 110v~240v power supply.
• Camera: 1080p HD camera with 2mp image capture to USB2.0 flash drive (flash drive not included). Has HDMI output and USB output. USB mouse is included.
• LCD Monitor: 13.3" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to camera. Includes 110~240V power cord and HDMI cable. On-screen monitor toolbar allows image capture, measurements, digital zoom in/out, horizontal flip, vertical flip, video freeze, display/hide camera control panel.
• Microscope Size: 320mm W x 280mm D x 480mm H (12.6" W x 11" D x  18.9" H)
• Warranty: 5 years on microscope excluding electrical parts. 1 year warranty on camera, monitor, and LED ring light/ LED pipe lights.

FZ8 Stereo Microscope Magnification Chart:

Part #: FZ8-LCD-SLK-LEDR4, FZ8-LCD-SLK-LDG
