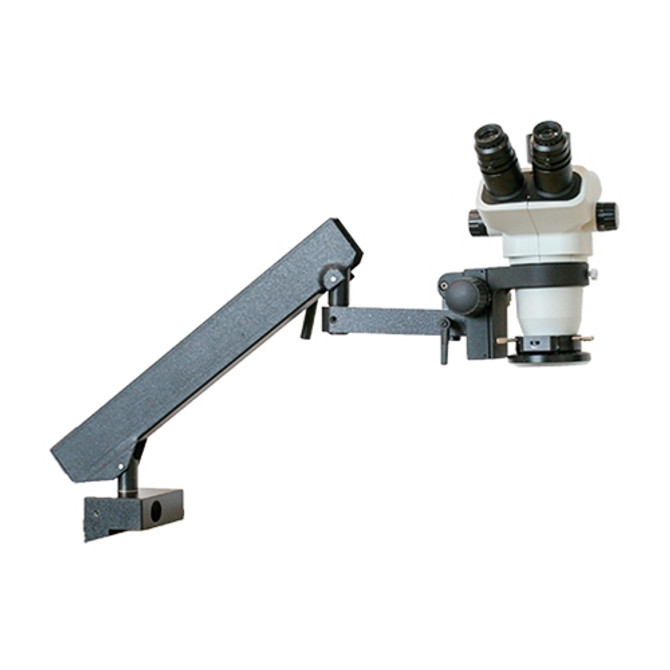

Fein Optic FZ8 Engraving & Jewelry Design Microscope

This Fein Optic Engraving and Jewelry Design stereo microscope provides high quality optics with a 8:1 zoom ratio.

• Viewing Head: 45° inclined binocular viewing head rotates 360°.
• Eyepieces: Includes high eyepoint widefield 10x / FN 24mm focusing eyepieces with ±5 diopter adjustment on each eye.
• Objective Lenses: With 10x eyepieces and no auxiliary lens, the stereo zoom range is 0.65x - 5.2x (zoom ratio of 8:1). System includes a 0.7x auxiliary lens, which will provide a zoom ratio of 0.46x - 3.64x when used. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 6.5x - 52x with no auxiliary lens, and 4.55x - 36.4x with 0.7x auxiliary lens. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart below for options.
• Stand: Short articulated arm stand clamps to table. Clamp opening size is 0-53mm. Distance of total articulated arm is 54". Height of articulated arm is adjustable.
• Working Distance: 100mm with no auxiliary lens, and 120mm with 0.7x auxiliary lens. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Focusing: Coarse focusing.
• Illumination: 4-quadrant LED ring light with ring light adapter is included.
• Size & Weight: Length of articulated arm is 54", 16lbs.
• Warranty: 5 year.
