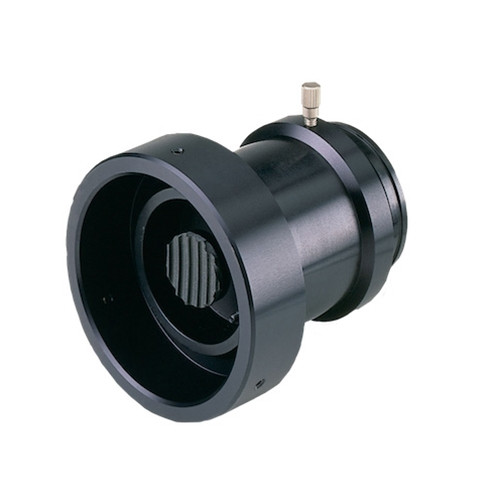

Encoded Focus Drive for Olympus IX51/71 Microscopes

This Prior Scientific focus drive is encoded and is made for use with Olympus IX51/71 microscopes. This focus drive is not for use with internally motorized microscopes. The motorized focus control provides step sizes as small as 0.002µm, providing excellent resolution for precise and repeatable Z-axis focusing. For larger movements where speed is required, the focus motor can be driven up to 20 revolutions per second. The drive has a rotating cable system designed to prevent the cable from twisting around the drive. Standard focus drive clamps onto the coarse and drives the fine focus with encoder probe with mounting bracket kit.

• Microscopes For Use With: Olympus IX51/71
• Encoder Probe Travel: 12mm
• Resolution: 50nm
• Absolute Accuracy: Better than 0.2µm
• Minimum Step Size: 0.002µm
• Top Speed: Up to 20 revolutions / second
• Controlled By: ProScan III or OptiScan III controller
• Includes: Focus coupler kit and focus sleeve.

Prior Scientific Part #: PS3H122EKIX

NOTE: This item is not returnable.
