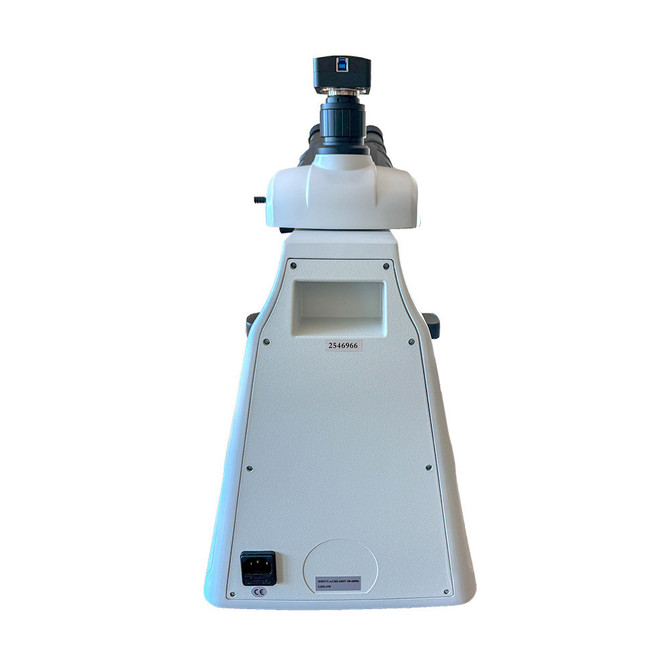

Digital Beer Brewing - Wine Microscope Basic Phase

This basic phase contrast digital beer brewing and wine making microscope was created to provide simple phase contrast for identifying and counting yeast, bacteria, wort, mold and other samples that vintners and breweries are searching for in the cultivation process.

• Body: Trinocular head with 30° inclined eyetubes. Interpupillary adjustment from 48-75mm. The 3-position beam splitter provides 100% light to the camera, 50/50 to the camera and eyepieces, or 100% light to the eyeypieces.
• Objective Lenses:  Quintuple nosepiece holds Infinity Corrected DIN Plan Achromat 4x, 10x, 40xR (phase contrast), 100xR (oil immersion) objectives.
• Eyepieces: Widefield PL 10x / 22 eyepieces. Left eyetube has +/-5 focusing adjustment.
• Total Magnification: 40x, 100x, 400x, 1000x.
• Specimen Stage: Large 185mm x 142mm stage with 75mm x 50mm X-Y travel range.
• Condenser: 1.25 N.A. Abbe condenser with iris diaphragm and phase slider for 40x Phase objective.
• Focusing: Coaxial coarse and fine focusing controls, tension adjustable. Fine adjustment of 0.002mm.
• Illumination: Fixed Koehler illuminator 3W LED provides bright and uniform field of view for each magnification. Field iris is adjustable with slot for 45mm diameter filter. Includes blue, green, and yellow filters. 110~240V power supply.
• Camera: Includes c-mount adapter and a 5.1 megapixel camera with basic image capture and measuring software.  Capture images up to 2592x1944. Ability to capture motion video.
• Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer has 2 scales: 1mm / 100 divisions and 10mm / 100 divisions. If NIST certification is selected 10 points will be certified. Please note that NIST certification takes approximately 2 weeks.
• Software Requirements:
  • Windows 7, 8, 10, 11 (32&64bit), Mac OSX 10.6 and higher, Linux (Kernel 2 or above)
  • CPU: Intel Core2, 2.8GHz or Higher
  • USB Port 2.0 or higher
  • RAM: 2 GB or more
• Size & Weight: 19" (483mm) H x 13" (330mm) D x 10" (254mm) W, 22 lbs.
• Warranty: 5 Year warranty, excluding bulb, cord and fuse. Camera has 1 year warranty.
