How to Center a Microscope Condenser: Step-by-Step Guide

A Step-by-Step Guide on How to Center your Microscope Condenser

A compound light microscope focuses the light through a condenser beneath the microscope stage. Follow these steps to center your microscope condenser.

1. Start with the Basics
   - Ensure the microscope is on a stable surface.
   - Use the 4x objective (lowest magnification) to start
   - Make sure the condenser is raised up all the way. View info on microscope condenser installation
2. Locate the Centering Screws

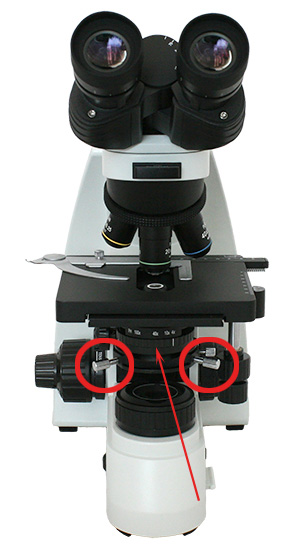

   - The microscope condenser will have two small screws on opposite sides, often built into the condenser holder (circled in red at right).
   - These centering screws allow precise adjustment of the condenser's position
3. Close down the Field Diaphragm
   - The field diaphragm is typically located at the base of the microscope (see red arrow at right).
   - Close the field diaphragm until you see a small polygon of light in the field of view.
4. Focus the Diaphragm Edge
   - Use the condenser height adjustment to bring the edges of the field diaphragm into sharp focus.
   - The diaphragm edge should appear as a crisp polygon (see image below).
5. Center the Diaphragm Image
   - Use the condenser centering screws to move the diaphragm image to the center of your field of view.
   - Adjust both screws in small increments until the polygon is perfectly centered.
6. Open the Field Diaphragm
   - Once centered, open the field diaphragm until its edges disappear from view.
   - This gives optimal illumination while reducing glare.
7. Check Higher Magnifications
   - Move to a higher power objective and repeat the process if necessary.
   - At 40x and above, precise condenser centering becomes increasingly important.



This image shows a properly centered microscope field diaphragm.
