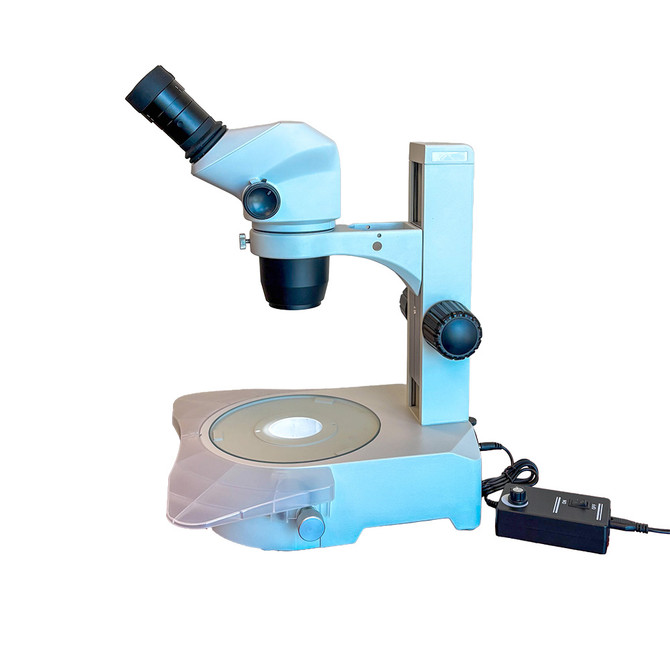

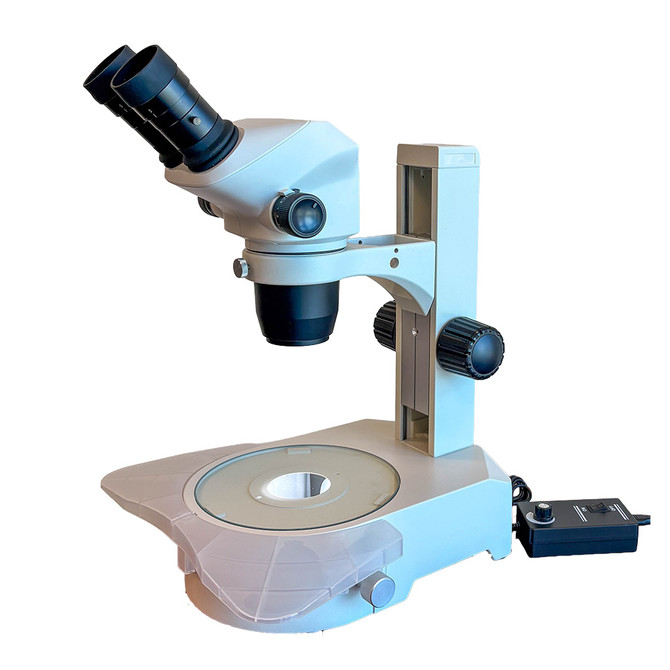

Basic Protein Crystallography Stereo Microscope FZ8

The Basic Protein Crystallography Stereo Microscope FZ8 is configured to meet the needs of laboratories studying protein crystallography. In this field, being able to distinguish between amorphous and crystalline specimens is important. Magnifications of greater than 10x are best for easy detection of small microcrystals. Pseudo-darkfield illumination is also used to evaluate crystallization.

• Head: 45° inclined binocular viewing head rotates 360°.
• Eyepieces: Includes widefield 15x eyepieces, FN=16 with ± 5 diopter adjustment on each eye.
• Objective Lenses: Zoom range of 0.65x - 5.2x. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Zoom Ratio: 8:1
• Total Magnification: 9.75x - 78x
• Specimen Stage: Supplied with 95mm diameter black/ white plastic stage plate and a 95mm glass stage plate.
• Stand: 325mm track stand with mirror base for brightfield/darkfield. The built in mirror has two sides, one plane and the other concave. Mirror is tilting adjustable. High intensity LED light is pumped in through base to provide a bright sample.
• Working Distance: 118mm
• Focusing: Rack & pinion focusing, and special tension adjustment located on focusing knobs to adjust tension.
• Illumination: High Intensity transmitted 35W LED illumination with intensity rheostat control and on/off switch. 110~240V switchable power supply.
• Polarization: Includes simple polarizing kit, 95 mm diameter.
• Size & Weight: Dimensions: 320mm W x 305mm D x 341mm H, Weight: ~10 lbs.
• Warranty: 5 year warranty on microscope excluding electrical components.
