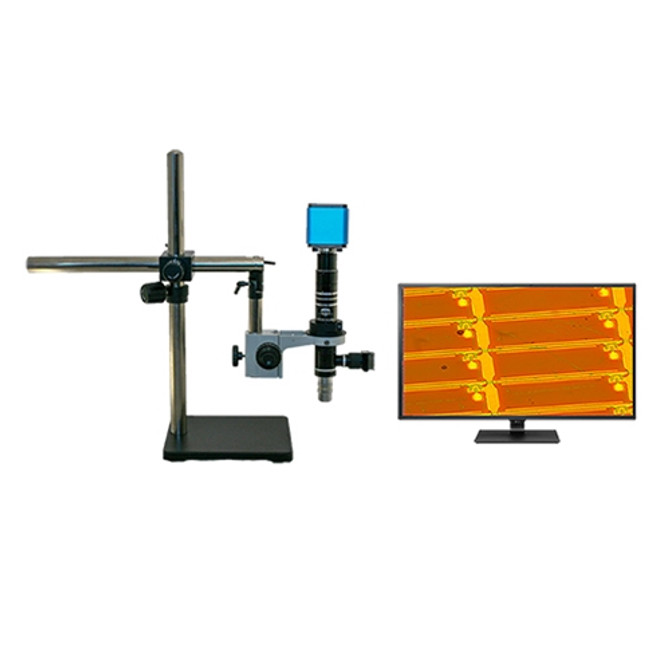

4K High Resolution Visual Inspection System Plan Apo
Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x options:
With Plan APO ELWD 5x Objective
With Plan APO ELWD 10x Objective
With Plan APO ELWD 20x Obje…
SKU:
$11,207.00 - $13,057.00
- Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x options:
- With Plan APO ELWD 5x Objective
- With Plan APO ELWD 10x Objective
- With Plan APO ELWD 20x Objective
- Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens.
- Focusing: Coaxial coarse and fine focusing. Focus knob tightness adjustable.
- Stand: Boom stand base is 1.2" x 10.2" x 1.3". Maximum distance from vertical post to the end of the base is 9.3". Vertical post is 26" with the included post extension.
- Magnification: See magnification chart below, depends on lens selected and size of monitor used.
- Illumination: Coaxial LED illumination.
- 4K HD Camera: Includes c-mount adapter and 4K HD camera with HDMI, USB3 and GE (Gigabit Ethernet) output. 1/1.8" Exmor Sony IMX334(C) sensor. Pixels 2.0 x 2.0µm. 60 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture, software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse.
- 4K Monitor: 24" 4K monitor with 3840 x 2160 resolution. 100~240V, 50/60Hz
- Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer is available separately for purchase.
- Warranty: Navitar Resolv4K lens has a lifetime limited warranty. Camera and monitor have a 1-year warranty.
| Resolution |
Lens |
Working Distance |
FOV | 22" Monitor Magnification |
| 2µm |
Plan Apo ELWD 5x | 34mm | 6.4 - 1mm | 112x - 788x |
| 1µm |
Plan APO ELWD 10x |
33.5mm | 3.2 - 0.5mm |
224x - 1576x |
| 0.7µm | Plan APO ELWD 20x |
20mm | 1.25 - 0.2mm | 448x - 3152x |
