Panasis Software Features

Panasis software is included with the DK and DCC microscope cameras offered from Microscope World. Below you will find the basic and advanced features of this microscope camera software.

MEASURING:

Panasis Measurement Feature

  • Basic measuring feature - select from the tool box options (shown at top left) to measure area, line distance, circles, angles, polygon, squares, among many others. Data can be collected and exported to Excel for analysis.
  • Auto-trace an image for measurement.

Panasis Calibration Image

  • Easy to use manual calibration allows for both live measurement and basic measurement after images have been captured. When calibrating enter the objective value used (40x for example), along with the units of measurement (um, mm, inches, etc.) desired.

Panasis Software Calibration image

  • Basic measurement made after calibration.

Panasis Measurement Image

  • Image above shows a variety of measurements including diameter of a circle, area of a circle, ellipse, rectangle, line, etc.

MULTI-FOCUS IMAGING:

Panasis Multi-Focus Image

  • Manual multi-focus imaging (extended depth of focus tool) allows the combination of several unfocused images into one sharp image. This process is very helpful when the subject height is greater than the available depth of focus, resulting in an image that is partially out of focus. Multiple images captured in sequence from top to bottom are combined into a composite in-focus image.

TILING / STITCHING:

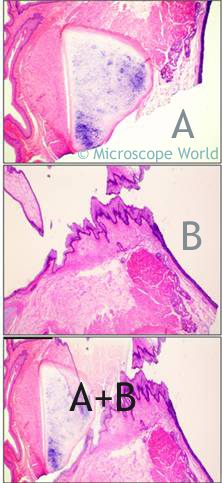

Panasis Manual Tiling Image

  • Manually stitch multiple microscope images together into one large tiled image.

Panasis Manual Tiling Image

  • In the stitching example above image A and image B were combined into the image on the bottom.

RECORD / CAPTURE:

Panasis Image Capture

  • Capture still images, record movies, time-lapse capture.
  • Camera support includes WDM, TWAIN acquisition.

Panasis Resize Image
  • Panasis software makes it easy to resize images quickly.
  • Panasis software allows image adjustments without using extensive photo editing software such as Photoshop.

Pansis Image Gallery
  • Images captured are stored in the image gallery, making it easy to locate and switch from one image to another.
  • Surface viewer can be used to view fine details in images.

EDITING:

 Panasis Annotation

  • Annotation - add text, outlines and symbols to previously captured images.

Panasis Rotate Image
  • Rotate options - vertical flip, horizontal flip, 90° clockwise, 90° counterclockwise.

Panasis Brightness Adjustment
  • Brightness and Contrast - adjust brightness, contrast and gamma. Side by side image view provides comparison while making adjustments.

Hue and Saturation Adjustment
  • Hue & Saturation - adjust hue, saturation and lightness. Side by side image view provides comparison while making adjustments.

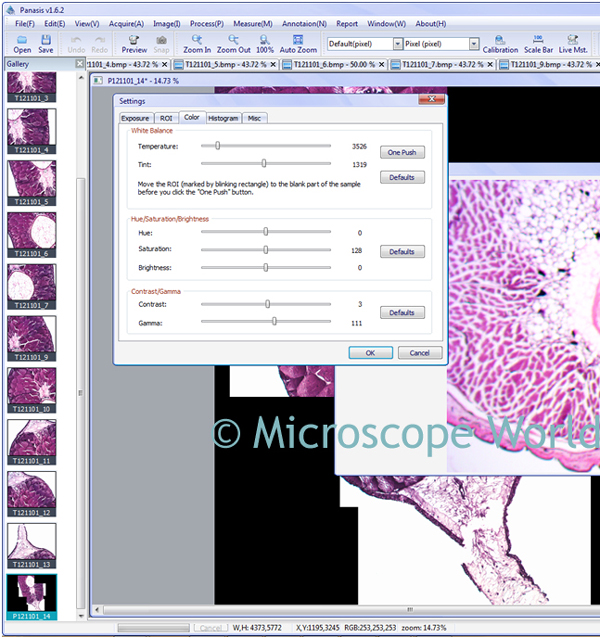

color adjustment
  • Color Adjustment - use defaults or adjust manually. Select monochromatic (black & white) or color.
  • White Balance - temperature and tint
  • Hue/Saturation/Brightness - adjust hue, saturation and brightness separately
  • Contrast/Gamma - adjust contrast and gamma separately

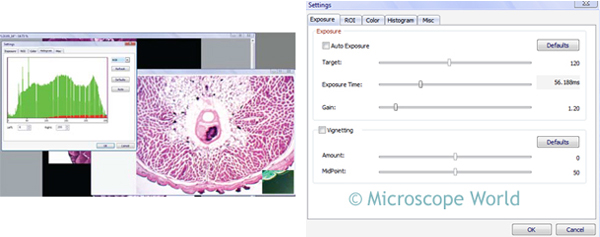

Histogram and Exposure
  • Histogram - ability to view color graph with RGB
  • Exposure Adjustment - adjust target, exposure time and gain. Or select auto exposure.
  • Vignetting - adjust amount and midpoint.

Filter
  • Morphology Filter options - open, close, erode, dilate, tophat, blackhat, morphology gradient

Spatial Filters
  • Spatial Filter options - Gaussin blur, median filter, sharpen, laplacian, sobel, low pass, high pass, sculpt

REPORTING

Data collection is recorded when making measurements. Export images and data to Excel for further analysis.
