Connecting the Moticam Microscope Camera to the Microscope

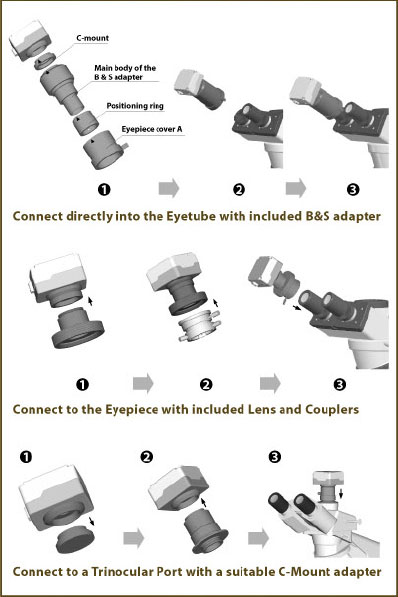

The images below show how to properly connect the Moticam 1SP, Moticam 2 or Moticam 3 microscope digital camera to your microscope. For the third option shown below, the C-Mount adapter is a microscope-specific part. For example, if you are using a Meiji microscope, you would need the corresponding Meiji C-Mount adapter. This is important, as each C-Mount adapter creates the proper focal length for the microscope, so that when the eyepieces are in focus, the camera will be in focus as well.

Microscope camera connection image
