ZEISS Axiovert 5 Inverted Biological Phase Microscope

The ZEISS Axiovert 5 inverted biology microscope is your inverted microscope for advanced routine work. This inverted microscope is used for routine lab work with cell cultures, scientific documentation, and basic research experiments.

• Objective Lenses: Infinity corrected LD A Plan Achromat 5x Ph, 10x Ph, 20x Ph objectives.
  • LD A Plan 5x/0.15, WD = 11.7mm, Ph1
  • LD A Plan 10x/0.25, WD = 8.5mm, Ph1
  • LD A Plan 20x/0.35, WD = 4.9mm, Ph1

• Viewing Head:  Binocular head inclined 45º , upright and unreversed image. Viewing height adjustable from 350-390mm. When ordering you have a choice to select binocular only, or binocular + left side photo port with 50/50 beam splitter. Includes ergo intermediate piece for optimal viewing height.

• Eyepieces: Widefield 10x / 23 focusing eyepieces, accept 26mm diameter reticle. Interpupillary distance adjustable from 48-75mm. Includes eyecups.

• Total Magnification: 50x, 100x, 200x.

• Specimen Stage:  Your choice of hardcoat plain stage, plain stage with Object Guide M, or mechanical stage (select when ordering):
  • Plain Stage = Specimen stage 232mm x 230mm with hardcoat anodized surface - Object Guide M is mountable on both sides.
  • Plain Stage with Object Guide M = Specimen stage 232mm x 230mm with hardcoat anodized surface including Object Guide M.

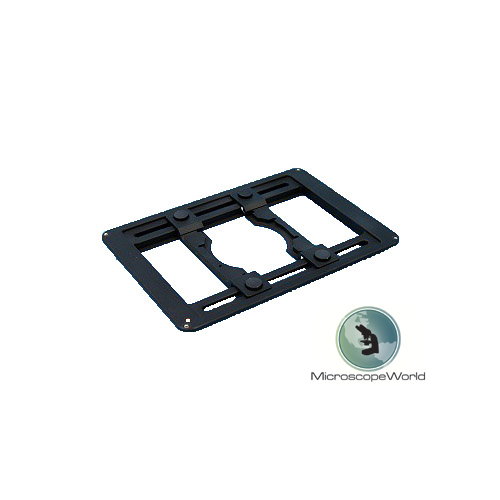

  • Mechanical stage = 130mm x 85mm R/L with short coaxial drive . Includes universal mounting frame for petri dishes diameter 24-68mm, slides (max length 120mm). Frame size is 160mm x 110mm.

• Focusing: Coarse and fine focusing with 13mm focus lift with adjustable focus stop.
• Condenser: LD Condenser NA0.3, WD = 72mm,rotatable with click stops at 0º, 90º, 180º, 270º, for objectives 2.5x - 40x. Condenser has aperture stop. Includes phase slider with fixed phase stop, Ph1/0.3, green filter and ND6 filter.

• Illumination: Includes 10W transmitted LED light with very high color rendering index (CRI) for excellent color reproduction. Constant color temperature facilitates imaging with low heat radiation. The light manager provides uniform brightness in the eyepieces upon magnification change.  Includes ECO mode.

• Stand Features: Stand with 6-position encoded nosepiece, B DIC M27 with 10 x 29mm slider mount. Integrated 10W LED white light and 2-position filter slider, manual and coarse focus drive with 13mm focus lift with adjustable focus stop. Snap button is included for Axiocam. 100~240V AC. Includes dust protection set.

• Size & Weight: 244mm (9.6") W x 503mm (20") D x 505mm (20") H, 24lb

• Warranty: 1 Year.
