Free Ground Shipping

Video Microscope System 1500x

Video Microscope System 1500x
SKU:VM-BMSQ-50
Price: $4,589.00

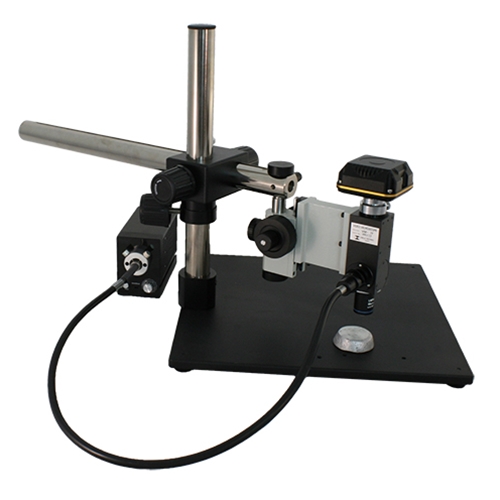

Video Microscope Boom System 1500x

  • Objective Lens: Your choice of the following lens:
      • FMPLN50x Plan Achromat LWD 50x Objective, NA 0.55, WD 7.9mm, resolution 0.61µm
      • BF-SAPO-M50 Semi APO Brightfield Metallurgical 50x Objective, NA 0.80, WD 1.2mm, resolution 0.42µm.
  • Camera Mount: Includes c-mount adapter to mount camera directly to the lens system.
  • Focusing: Includes coarse and fine focusing.
  • Stand: Large base boom stand with 20mm mounting post. Base is 15" x 15.5". Height of vertical post is 17.5".
  • Working Distance: 7.9mm (1.2mm if Semi APO objective is selected)
  • Magnification: When using 19" monitor on-screen magnification is 1507x. Larger monitor = more magnification, smaller = less.
  • Illumination: Single arm light guide with high intensity LED illuminator, shining through objective.
  • Camera: 3.2 Megapixel digital color camera with 1/2" CMOS Aptina MT9T001(C) sensor. Captures images 2048x1536. Captures motion video at 45fps at 680x510, 32fps @ 1048x768, 11.5fps @ 2048x1536. Includes basic capture and measurement software.
  • Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer included is a dual ruler with 1" equally spaced and numbered 0-10 as well as 25mm equally spaced and numbered 0-25. If NIST certification is selected 10 points on each scale will be certified. Please note that NIST certification takes approximately 2 weeks.
  • Computer Requirements: Windows 7, 8, 10 (32 & 64 bit), Mac OSX. CPU: Intel Core2, 2.8GHz or higher. USB Port 2.0. RAM 2GB+.
  • Warranty: Camera has 1 year warranty. Microscope system has 5 year warranty.
