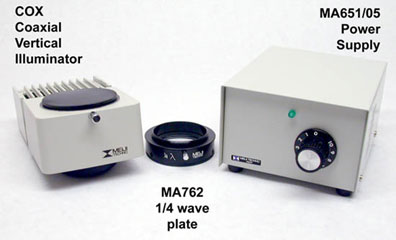

The coaxial vertical illuminator (shown at left) is used when observing flat, highly reflective specimens such as integrated circuits, semiconductor wafers, polished metal specimens, solder balls, or magnetic recording heads.
The coaxial vertical illuminator mounts between the Meiji RZB stereo body and the binocular viewing head and directs light from a 6v, 30w halogen lamp down through the objective onto the specimen.
The coaxial illuminator is powered by a free-standing transformer (shown at right).
|
