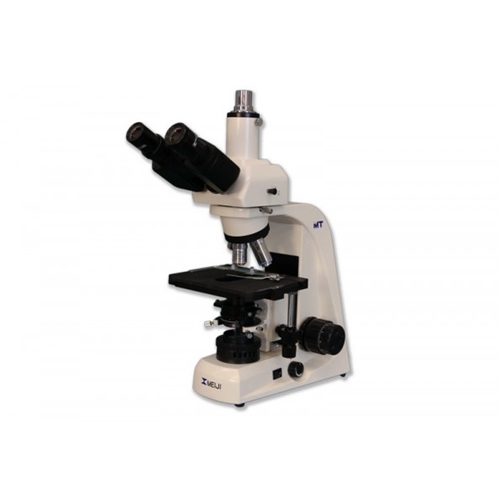

Meiji MT6530 Trinocular Asbestos Microscope for Fiber Counting

SKU: MT6530
Regular Price: $3,250.00
On Sale For: $2,925.00
The Meiji MT6530 asbestos phase contrast microscope for NIOSH 7400 and OSHA ID 160 reference methods includes the following:

  • Objective Lenses: DIN Infinity Corrected brightfield U. Plan 4x, U. Plan 10x and U. Plan Positive Phase Contrast 40x objectives mounted in quintuple nosepiece.
  • Eyepieces: Siedentopf trinocular head with HWF10x DIN standard compensating eyepiece (FN 20) and HWF10x focusing eyepiece with Walton & Beckett reticle (type G-22 with 3:1 aspect ratio), FN 20. Interpupillary adjustment from 53mm to 75mm. Graduated diopter on left eyetube. Inclined at 30 degrees. Trinocular head allows camera integration and includes sliding 80/20 beam splitter.
  • Total Magnification: 40x, 100x, 400x.
  • Specimen Stage: Ceramic coated flat top mechanical X-Y stage measures 171mm x 115mm and travels 78mm(X) x 52mm(Y). Attached finger assembly and ergonomically positioned coaxial drop-down controls. Includes stage micrometer 1mm divided into 100 units (each division = 0.01mm).
  • Focusing: Coaxial coarse and fine focus adjustment with graduation reading 2 microns per division, fitted with tension adjustment and safety auto focus stop.
  • Illumination: Built-in Koehler illuminator with 6v 30w halogen lamp, including variable intensity control.
  • Phase Contrast: Includes centering telescope.
  • Light Focusing: Abbe condenser NA 1.25 with iris, centerable 20x and 40x positive phase annulus, and dovetail mount.
  • Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
  • Includes: Stage micrometer 1mm / 100 divisions, green interference filter 546nm, blue clear filter, centering telescope, dust cover and owner's manual.
